Section 37 (Seat Belt)
>>
Seat Belt Warning System
>>
Parts Location (2005/05-2006/01)
Parts Location (2005/05-2006/01)
WARNING:
This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

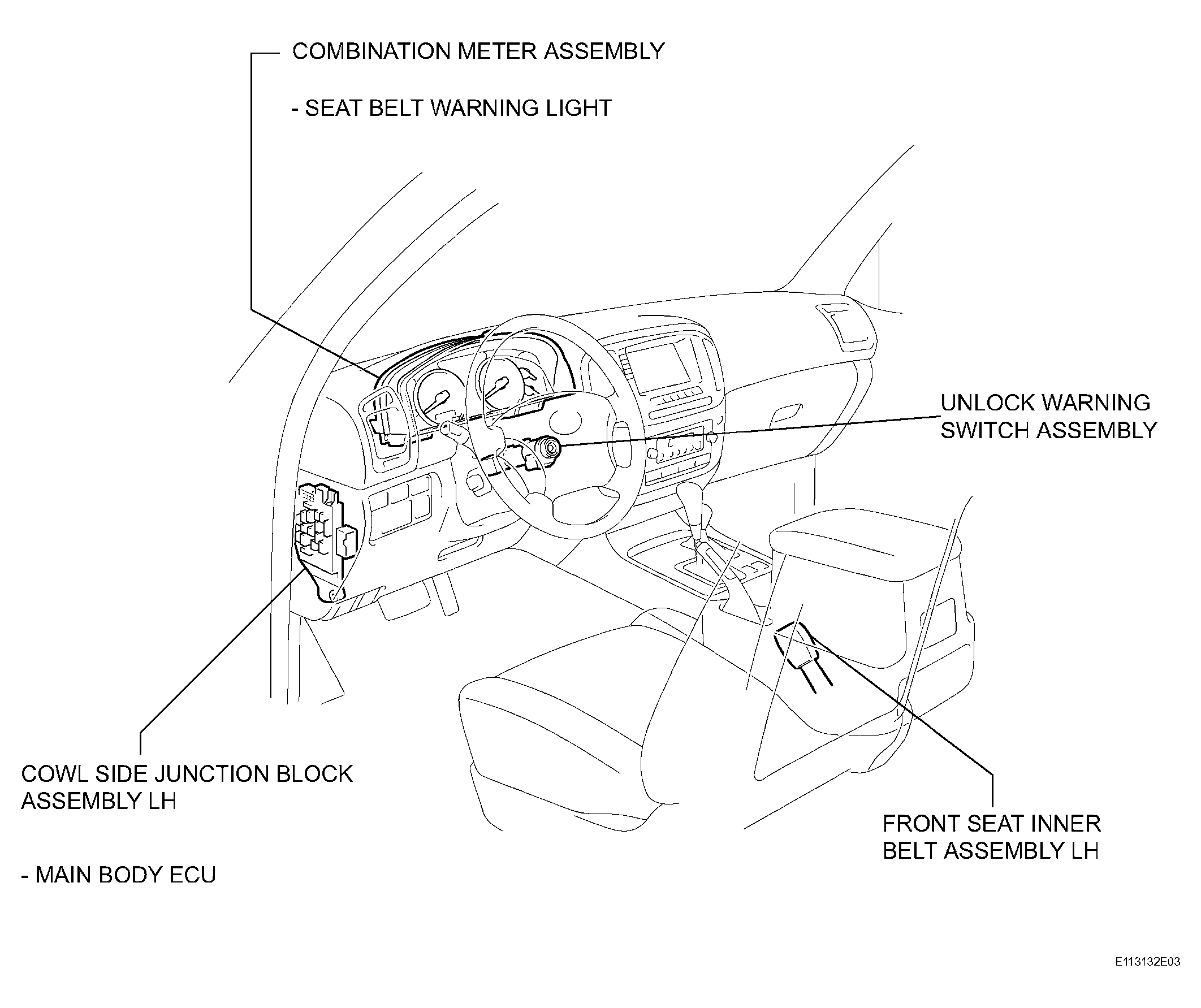

Fig 1: Identifying Seat Belt Warning System Parts Location (2005/05-2006/01)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
