Buckle Switch Circuit (2006/01-): Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

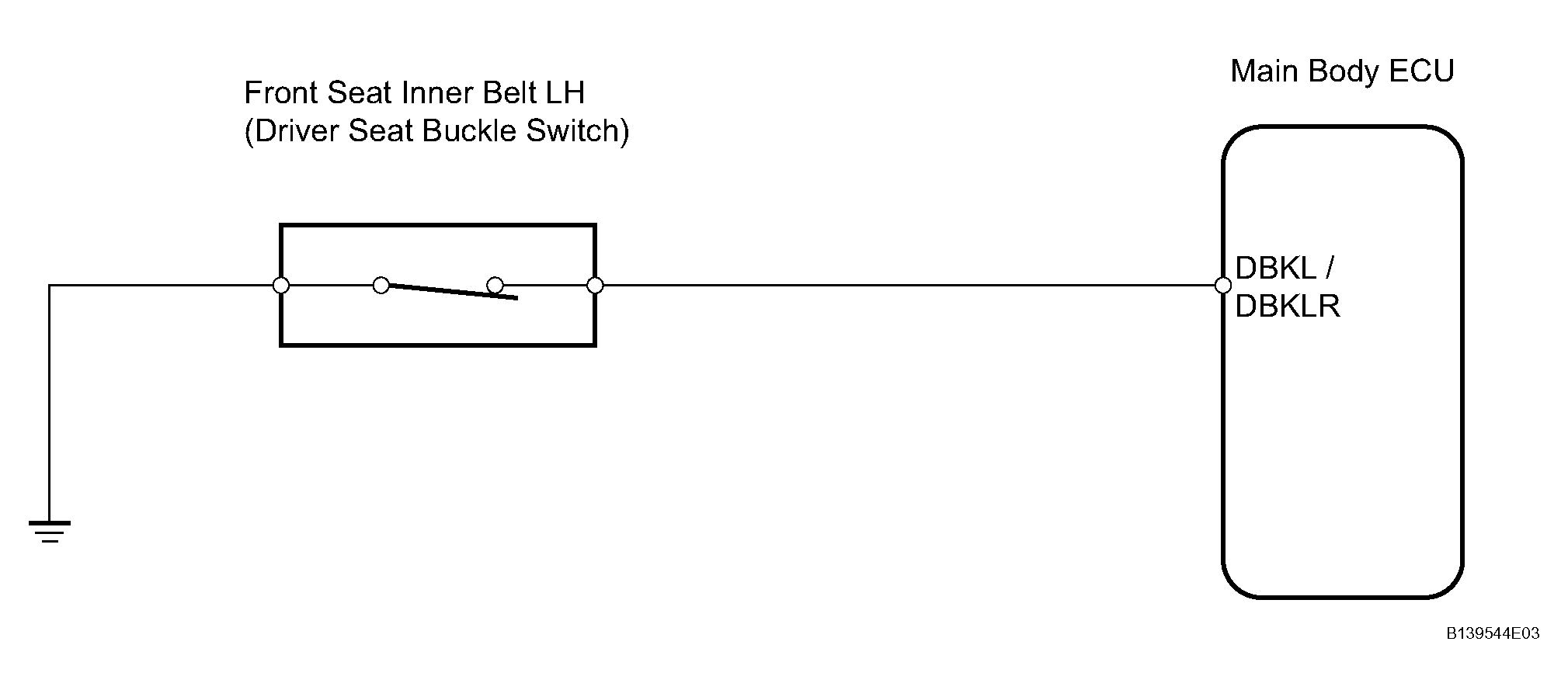

Fig 1: Buckle Switch Circuit (2006/01-) - Wiring Diagram
G04438376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
