Installation (2005/05-2006/01)

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never use a seat belt pretensioner from another vehicle. When replacing parts, replace them with new parts.
Make sure that the front seat outer belt is installed with the specified torque.
If the front seat outer belt has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front seat outer belt with a new one.
When installing the front seat outer belt, take care that the wiring does not interfere with other parts and is not pinched between other parts.

INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH
1. Install the front seat outer belt retractor with the 2 bolts.
  Torque: 5 N*m (51 kgf*cm, 44 in.*lbf) for upper bolt

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf) for lower bolt
2. Connect the pretensioner connector in the order A to B as shown.
3. Install the shoulder anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
INSTALL SEAT BELT ANCHOR COVER CAP

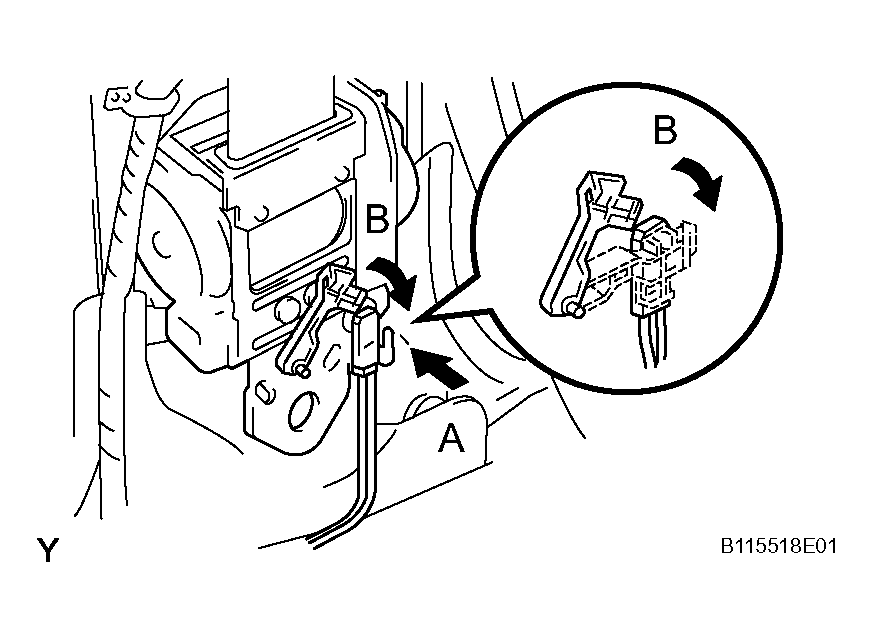

Fig 1: Connecting Pretensioner Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER PILLAR GARNISH LOWER LH
1. Attach the center pillar garnish lower as shown.
2. Attach the center pillar lower garnish cover.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
INSTALL REAR DOOR SCUFF PLATE LH
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Fig 2: Attaching Center Pillar Garnish Lower

INSTALL FRONT DOOR SCUFF PLATE LH
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
