Front Airbag Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION ).

INSTALL FRONT AIRBAG SENSOR LH
1. Install the sensor with the 2 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
  NOTE:
  - If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
  - When installing the airbag sensor, make sure that the SRS wiring does not interfere with other parts and is not pinched between other parts.

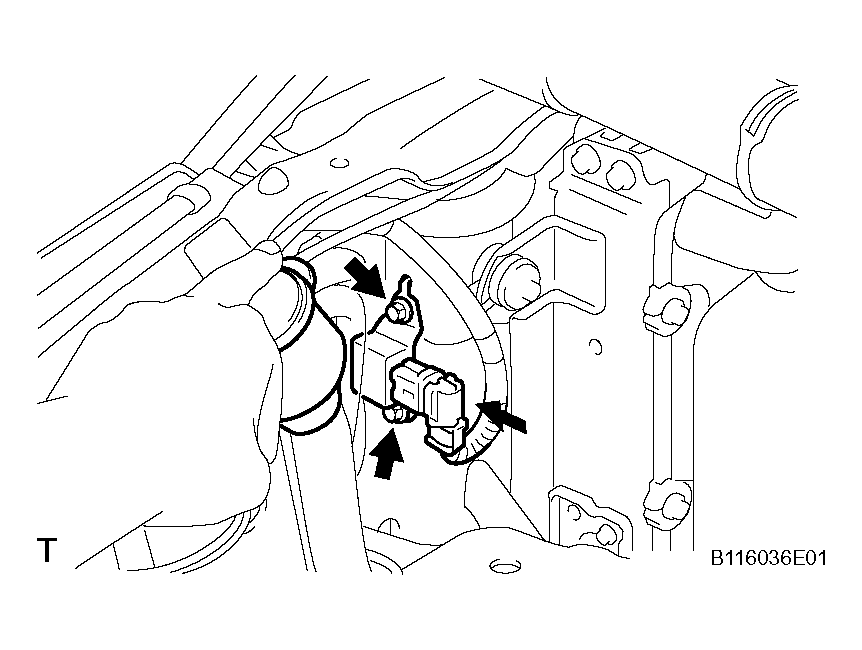

    Fig 1: Installing Front Airbag Sensor LH
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that there is no free play in the installation parts of the sensor.
3. Connect the sensor connector.
INSTALL FRONT AIRBAG SENSOR RH
1. Install the sensor with the 2 bolts.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
  NOTE:
  - If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
  - When installing the airbag sensor, make sure that the SRS wiring does not interfere with other parts and is not pinched between other parts.

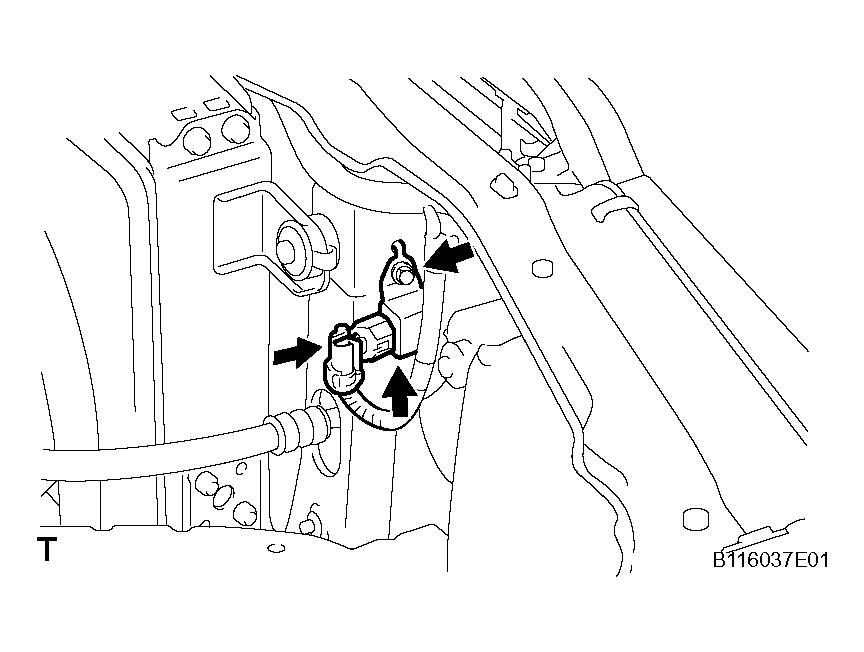

    Fig 2: Installing Front Airbag Sensor RH
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that there is no free play in the installation parts of the sensor.
3. Connect the sensor connector.
INSTALL BATTERY
1. Install the battery.
2. Install the battery stay with the bolt and nut.
3. Connect the cable to the positive (+) battery terminal.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
