Parts Location (2005/05-2006/01)

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

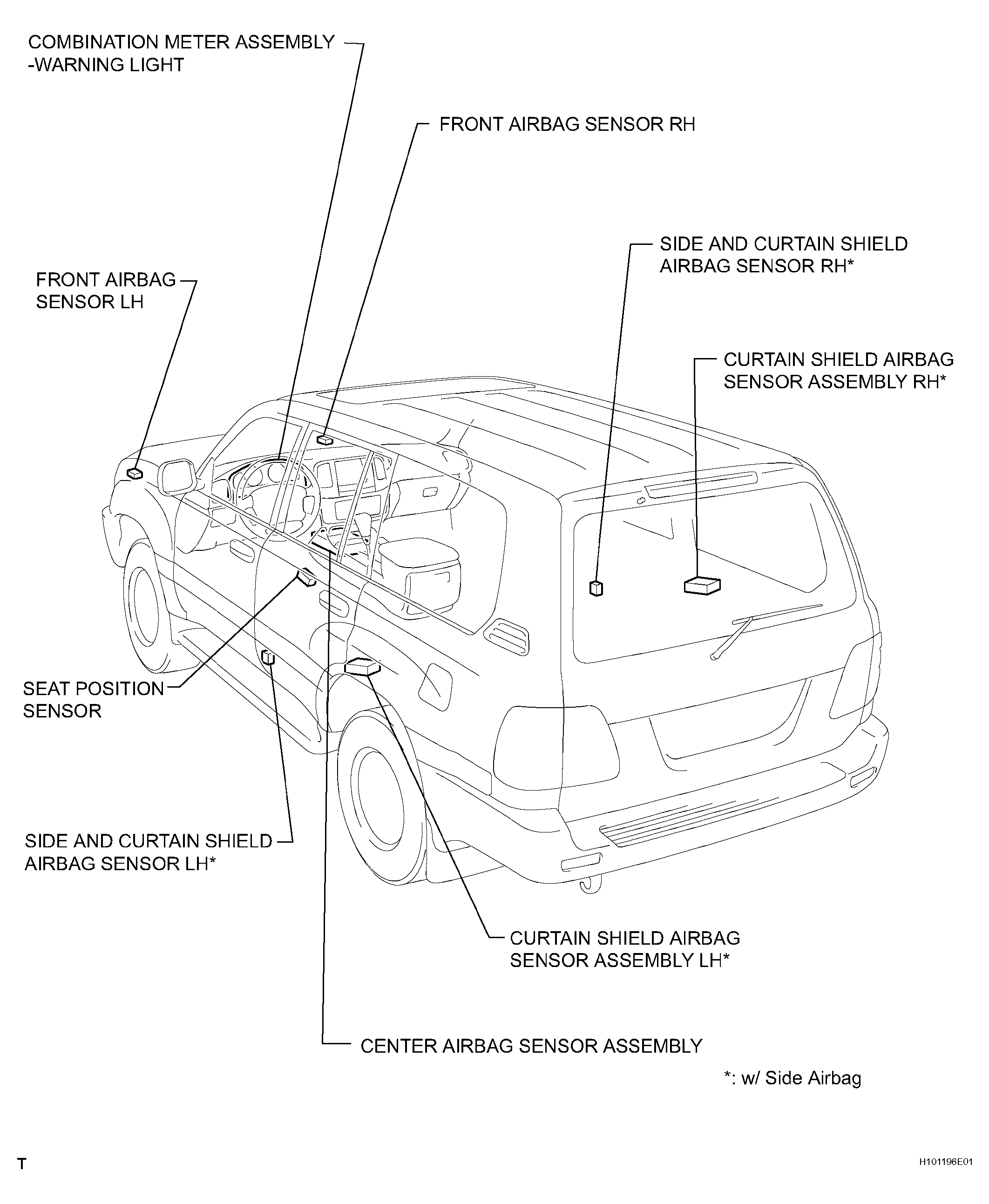

Fig 1: Identifying Supplemental Restraint System Parts Location (1 Of 2)
G04437899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

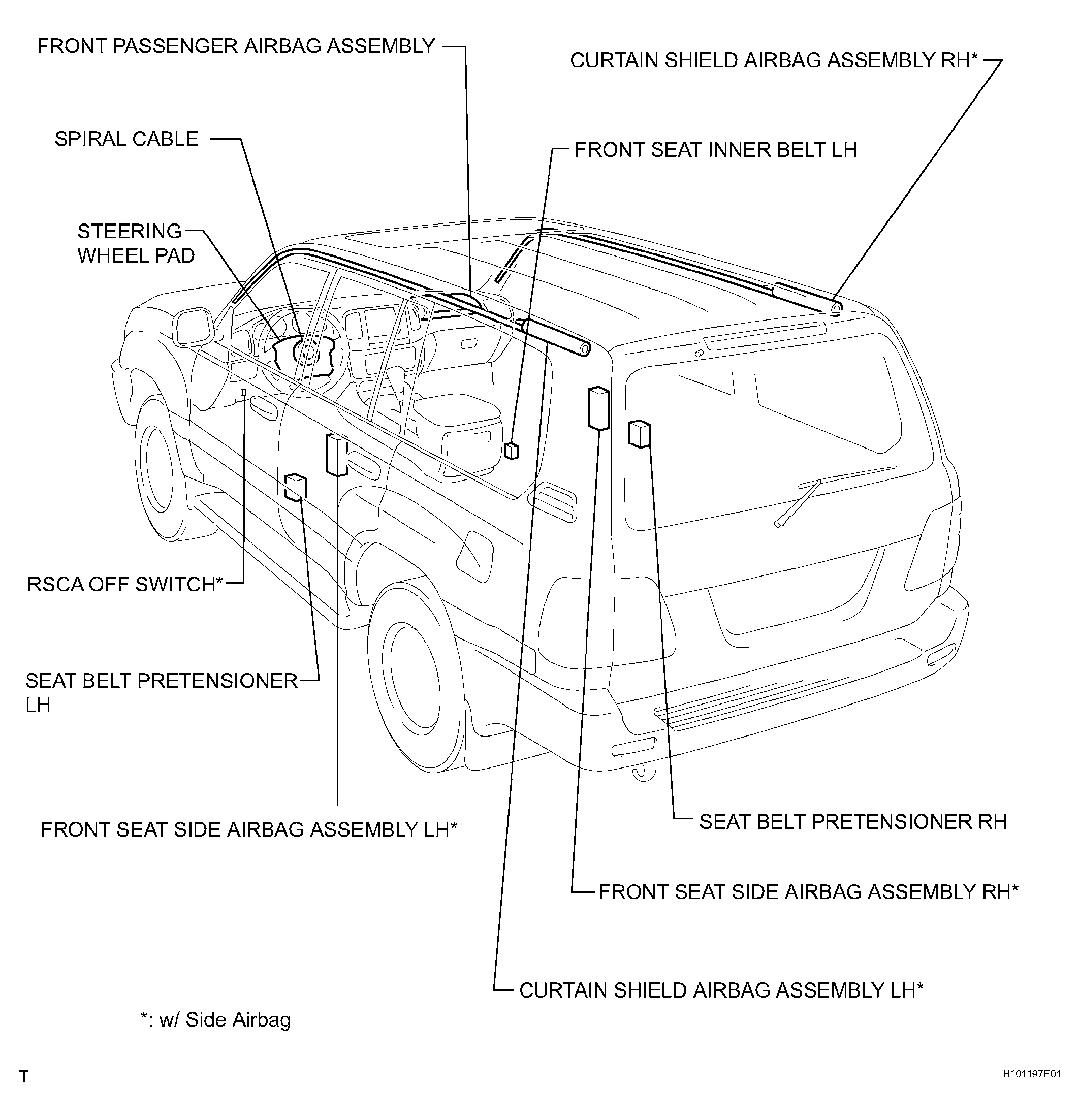

Fig 2: Identifying Supplemental Restraint System Parts Location (2 Of 2)
G04437900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
