Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CHECK NO. 1 FLOOR WIRE
1. Turn the ignition switch to LOCK.
2. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
3. Disconnect the connectors from the center airbag sensor and the curtain shield airbag LH.
4. Release the airbag activation prevention mechanism built in the connector of the No. 1 floor wire on the center airbag sensor side (see DIAGNOSIS SYSTEM ).
5. Measure the resistance between ICL+ and ICL- of the C29 No. 1 floor wire connector on the curtain shield airbag LH (curtain shield squib LH) side.
  Standard resistance: 1 MΩ or higher
NG: REPAIR OR REPLACE NO. 1 FLOOR WIRE

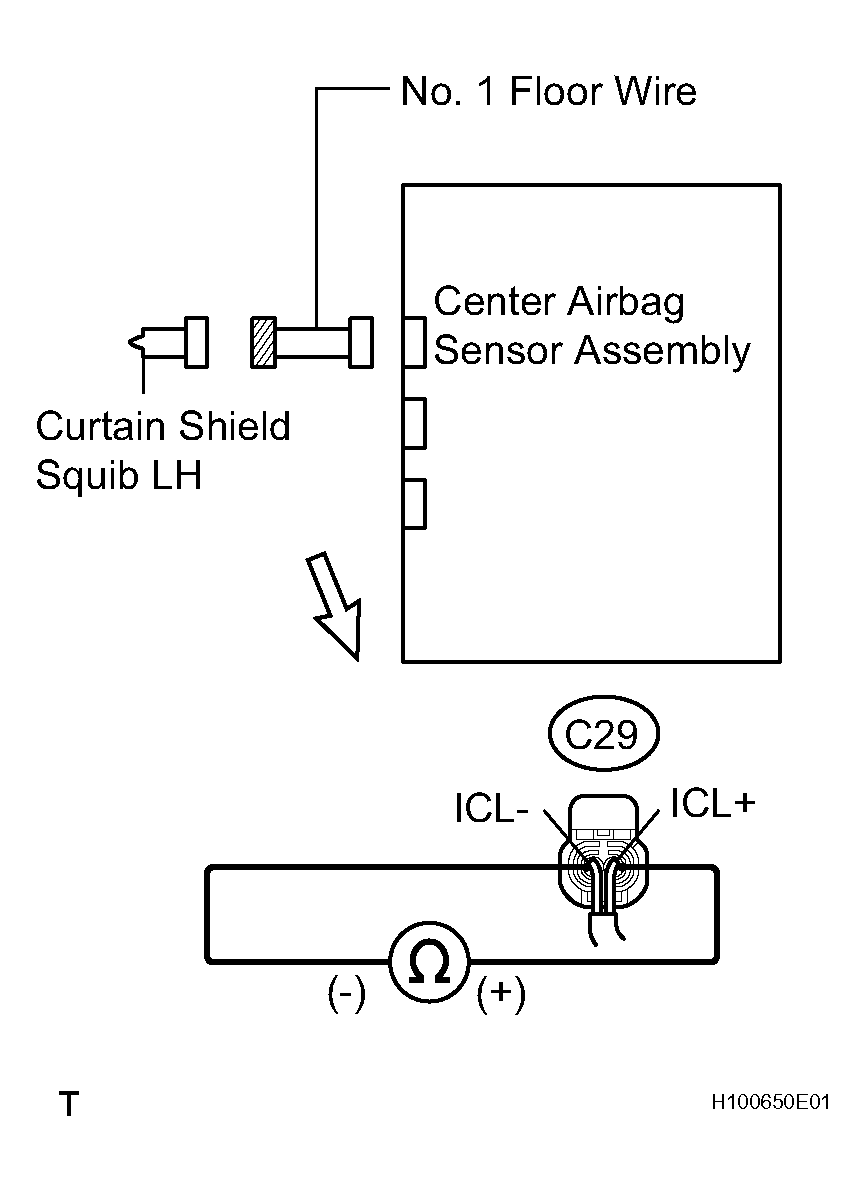

Fig 1: Checking No. 1 Floor Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP
CHECK CENTER AIRBAG SENSOR ASSEMBLY
1. Connect the connector to the center airbag sensor.
2. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
3. Turn the ignition switch to ON, and wait at least for 10 seconds.
4. Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
5. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
6. Turn the ignition switch to ON, and wait at least for 10 seconds.
7. Check the DTC (see DTC CHECK/CLEAR ).
  OK: DTC B1165/87 is not output.

  HINT:

  Codes other than code B1165/87 may be output at this time, but they are not relevant to this check.
NG: REPLACE CENTER AIRBAG SENSOR ASSEMBLY

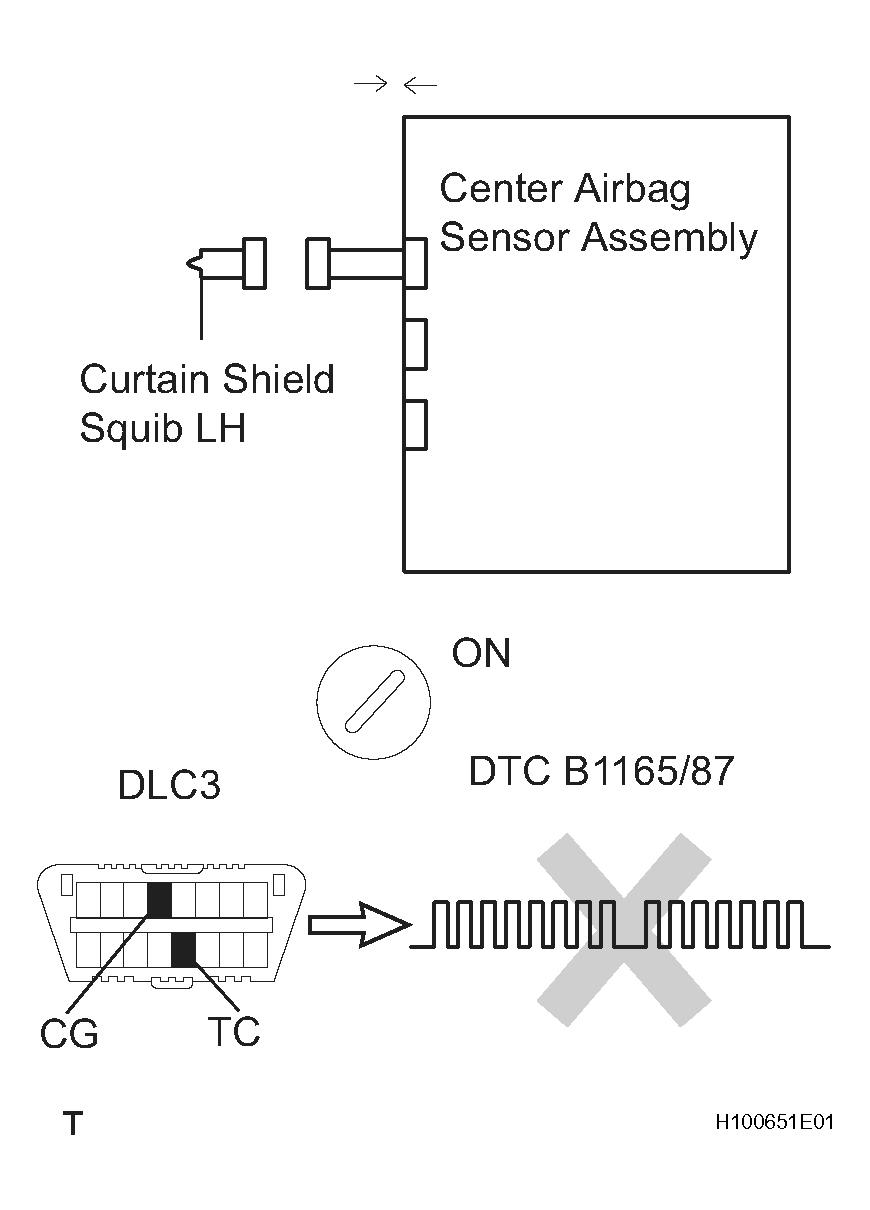

Fig 2: Identifying DLC3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP
CHECK CURTAIN SHIELD SQUIB LH
1. Turn the ignition switch to LOCK.
2. Disconnect the negative (-) terminal cable from the battery, and wait at least for 90 seconds.
3. Connect the curtain shield airbag LH (curtain shield squib LH) connector.
4. Connect the negative (-) terminal cable to the battery, and wait at least for 2 seconds.
5. Turn the ignition switch to ON, and wait at least for 10 seconds.
6. Clear the DTC stored in memory (see DTC CHECK/CLEAR ).
7. Turn the ignition switch to LOCK, and wait at least for 10 seconds.
8. Turn the ignition switch to ON, and wait at least for 10 seconds.
9. Check the DTC (see DTC CHECK/CLEAR ).
  OK: DTC B1165/87 is not output.

  HINT:

  Codes other than code B1165/87 may be output at this time, but they are not relevant to this check.
NG: REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH (CURTAIN SHIELD SQUIB LH)

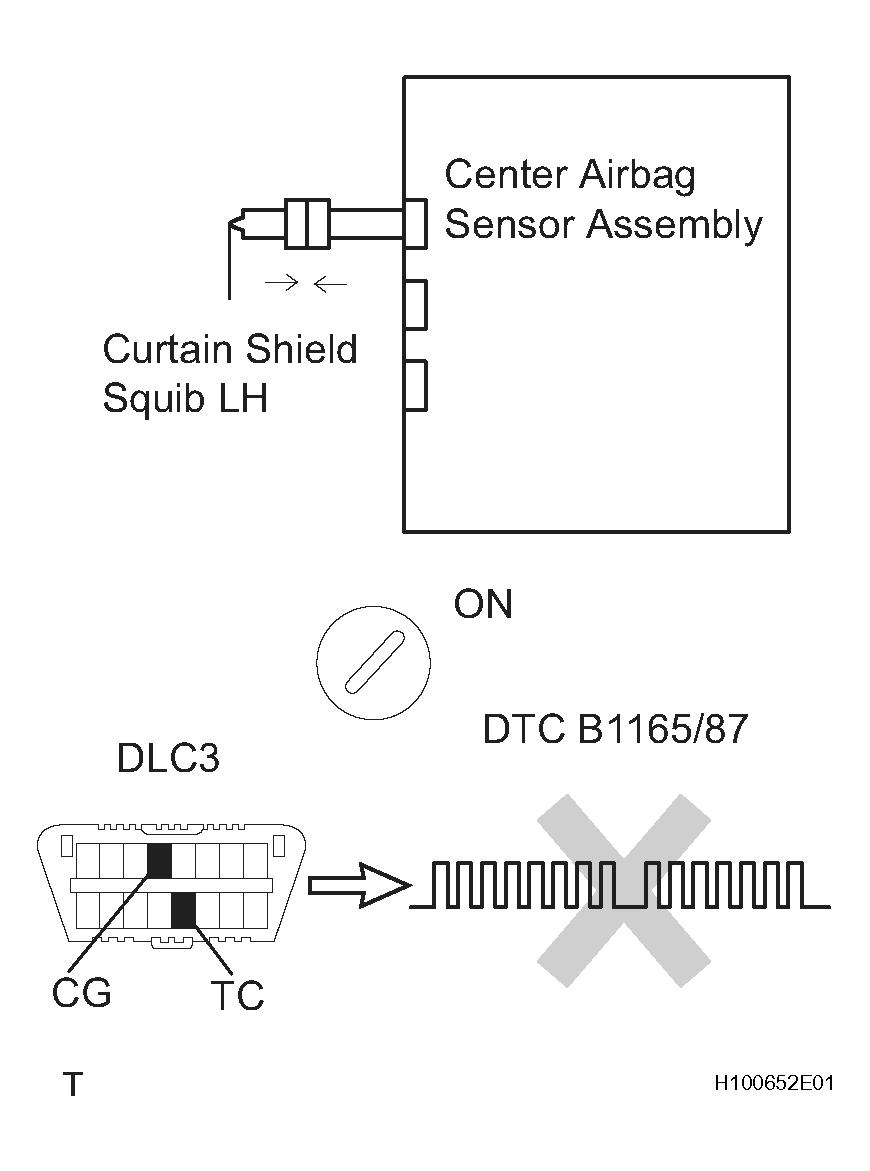

Fig 3: Identifying DLC3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: USE SIMULATION METHOD TO CHECK
