Airbag Cut-Off Switch: Inspection
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

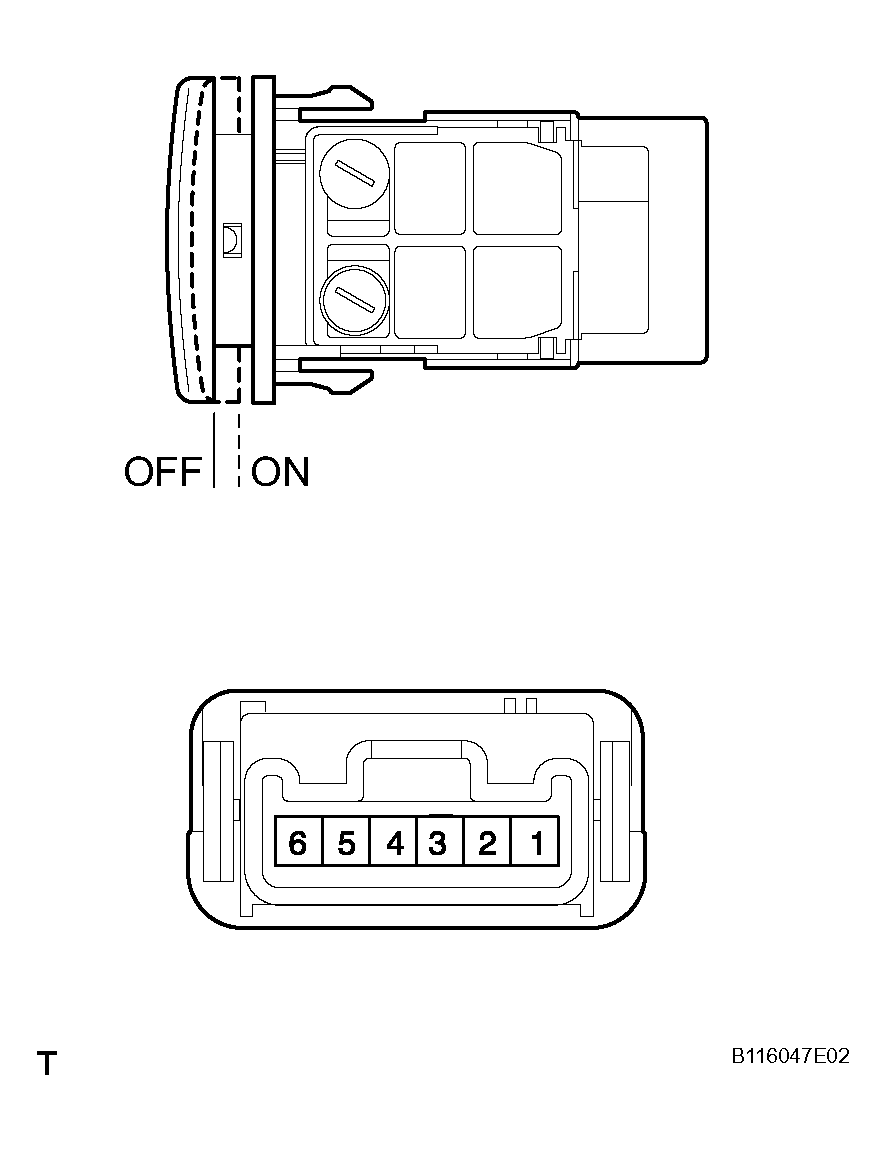

- INSPECT CURTAIN AIRBAG CUT-OFF SWITCH
- Measure the resistance of the switch.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Switch Condition Specified Condition 3 - 4 ON Below 1 Ω 3 - 4 OFF 10 kΩ or higher - Apply battery voltage to the switch connector and check that the illumination light illuminates.
OK: GO TO NEXT STEP
MEASUREMENT CONNECTION SPECIFIED CONDITION TABLEMeasurement Connection Specified Condition Battery positive (+) --> Terminal 1
Battery positive (-) --> Terminal 2Illumination light Illuminates If the result is not as specified, replace the bulb or switch.
- Measure the resistance of the switch.
