DTC C2192/92: Select Switch Error (Test Mode DTC): Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

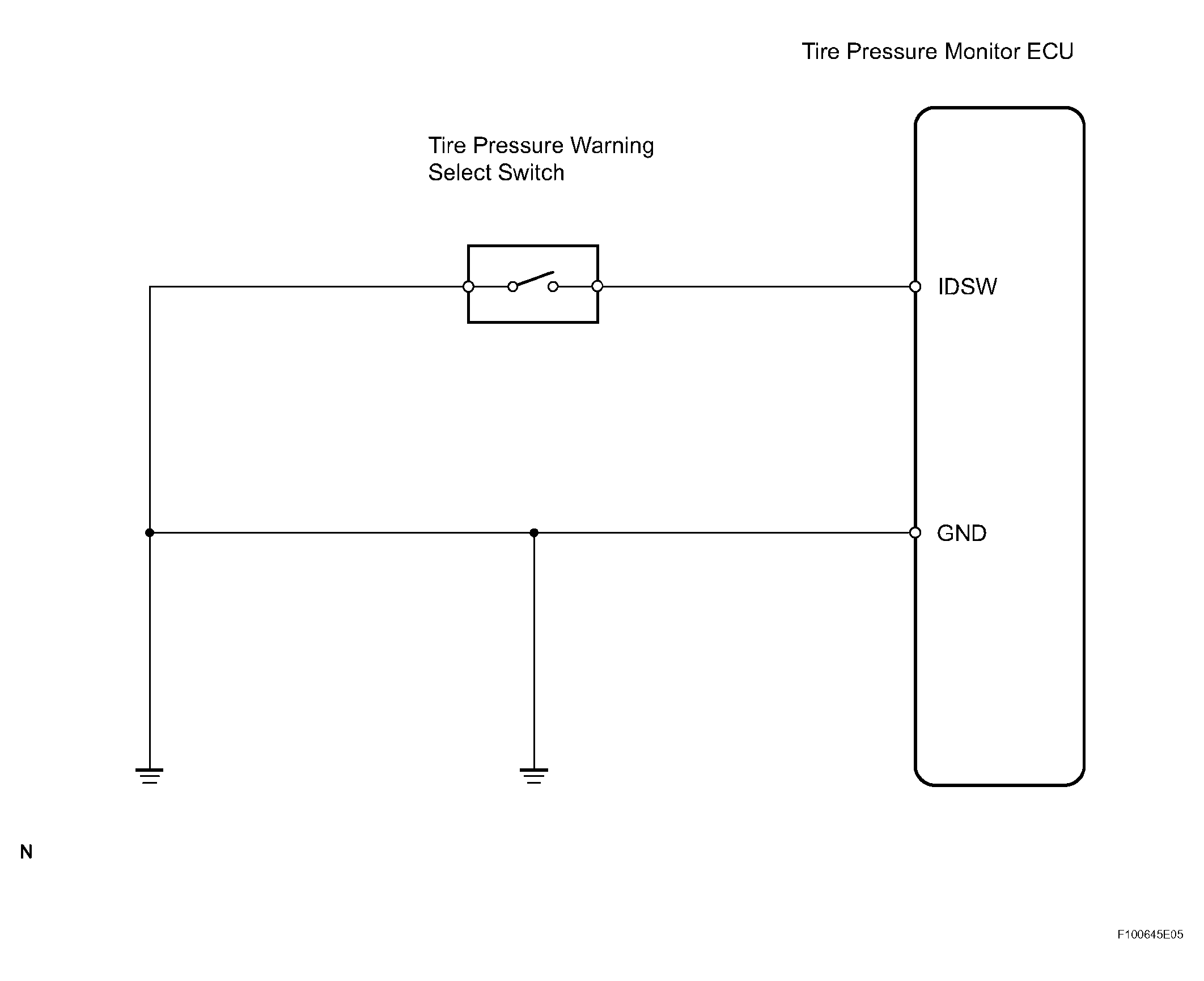

Fig 1: Tire Pressure Warning Select Switch Wiring Diagram
G04437678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
