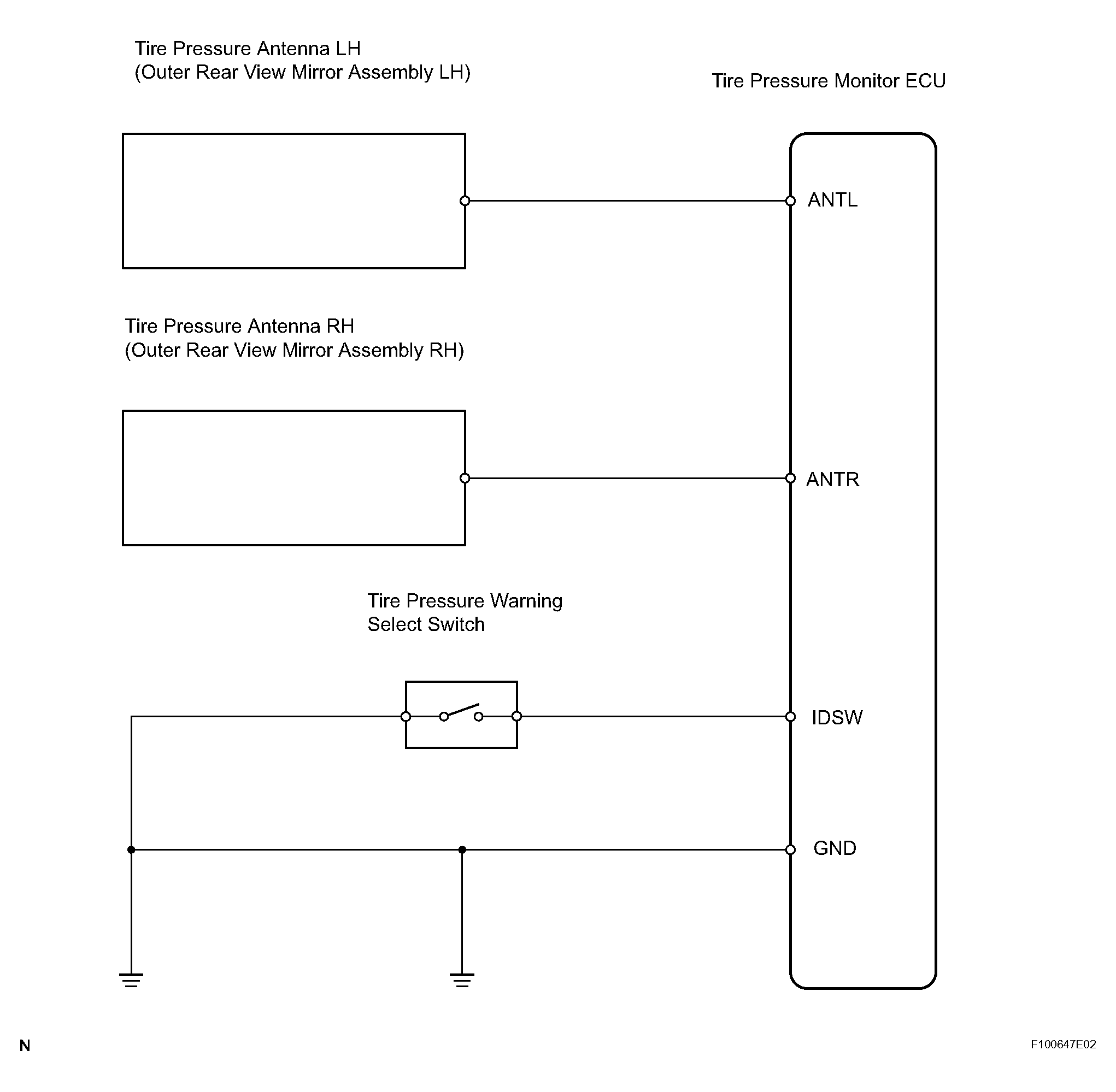

DTC C2171/71, C2172/72: Transmitter ID not Registered in Main Mode; Transmitter ID not Registered in 2nd Mode: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
