Tire And Wheel System: Inspection

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE

Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure

COLD TIRE INFLATION PRESSURE

Tire Size

Front Pressure

Rear Pressure

P275/70R16

200 kPa (2.0 kgf/cm² , 29 psi)
220 kPa (2.2 kgf/cm² , 32 psi)⁽¹⁾

⁽¹⁾	Trailer towing

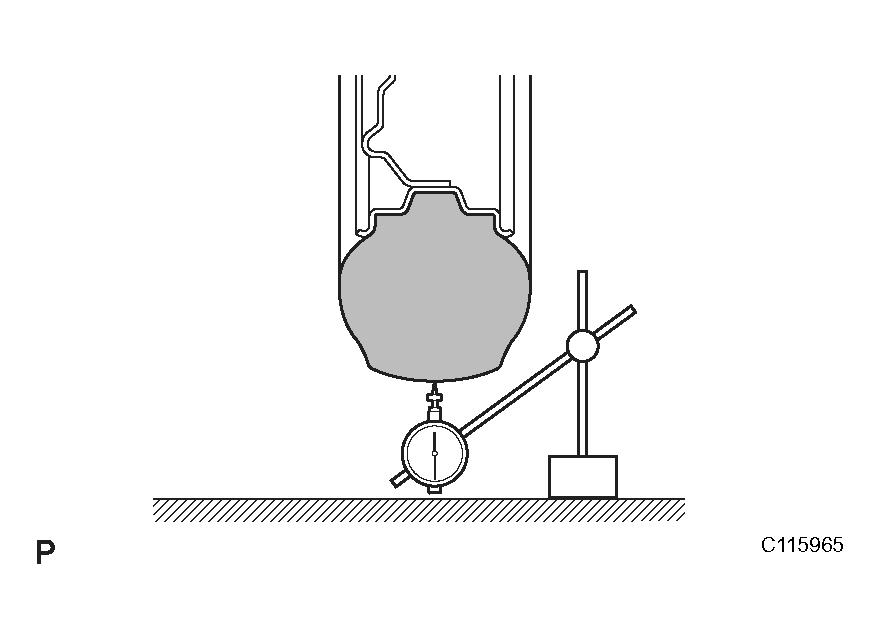

Check the tire runout.
Tire runout:

3.0 mm (0.118 in.) or less

Fig 1: Checking Tire Runout
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ROTATE TIRE
HINT:
- Rotate tires as shown in (A) in Fig 2 .
- Rotate as shown in (B) if the spare tire is included in the rotation.

  Fig 2: View Of Tire Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WHEEL BALANCE
1. Check and adjust the off-the car balance.
2. If necessary, check and adjust the On-the car balance.
  Imbalance after adjustment:

  14.0 g (0.031 lb) or less
INSPECT FRONT WHEEL ALIGNMENT
1. Inspect the front wheel alignment (see FRONT WHEEL ALIGNMENT ).

  Fig 3: Identifying Wheel Balance Machine
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
