Tire And Wheel System: Inspection

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRES

Check the tires for wear and proper inflation pressure.

Cold tire inflation pressure:

for Hatchback

TIRE INFLATION PRESSURE SPECIFICATION FOR HATCHBACK

Tire Size	Vehicle Speed	Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
P175/65R14 81S P185/60R15 84T	Driving below 160 km/h (100 mph)	220 (2.2, 32)	220 (2.2, 32)
P175/65R14 81S P185/60R15 84T	Driving over 160 km/h (100 mph)	240 (2.4, 35)	240 (2.4, 35)
185/60R15 84H	Driving below 160 km/h (100 mph)	220 (2.2, 32)	220 (2.2, 32)
185/60R15 84H	Driving over 160 km/h (100 mph)	230 (2.3, 33)	230 (2.3, 33)

for Sedan

TIRE INFLATION PRESSURE SPECIFICATION FOR SEDAN

Tire Size	Vehicle Speed	Front kPa (kgf/cm² , psi)	Rear kPa (kgf/cm² , psi)
P175/65R14 81S P185/60R15 84T	Driving below 160 km/h (100 mph)	220 (2.2, 32)	220 (2.2, 32)
P175/65R14 81S P185/60R15 84T	Driving over 160 km/h (100 mph)	240 (2.4, 35)	240 (2.4, 35)
175/65R14 82T 185/60R15 84H	Driving below 160 km/h (100 mph)	220 (2.2, 32)	220 (2.2, 32)
175/65R14 82T 185/60R15 84H	Driving over 160 km/h (100 mph)	230 (2.3, 33)	230 (2.3, 33)

Using a dial indicator, check the tire runout.
Tire runout:

1.4 mm (0.055 in.) or less

Fig 1: Identifying Runout Of Tires
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ROTATE TIRES

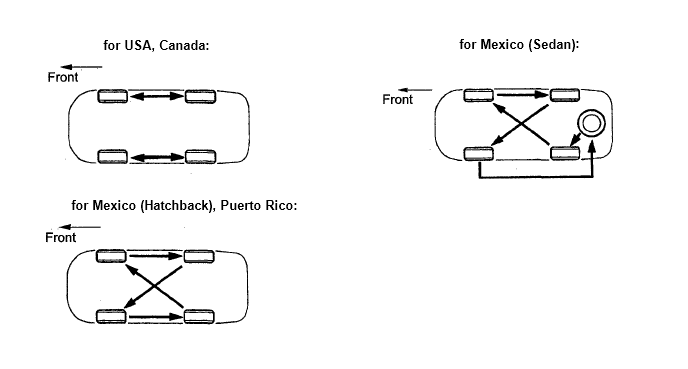

Fig 2: Rotating Tires
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Rotate tires, as shown in the illustration.
INSPECT WHEEL BALANCE
1. Check and perform off-car balancing.

  Fig 3: Identifying Wheel Balance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If required, perform on-car balancing.
  Imbalance after adjustment:

  8 g (0.0181b) or less
INSPECT FRONT AXLE HUB BEARING (See ON-VEHICLE INSPECTION )
INSPECT REAR AXLE HUB BEARING (See ON-VEHICLE INSPECTION )
