TIRE PRESSURE WARNING RECEIVER (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specifications (For Sedan) (1 Of 4)
G05591499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specification (For Sedan) (2 Of 4)
G05591500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Tire Pressure Warning Receiver Replacement Components (For Sedan) (3 Of 4)
G05591501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

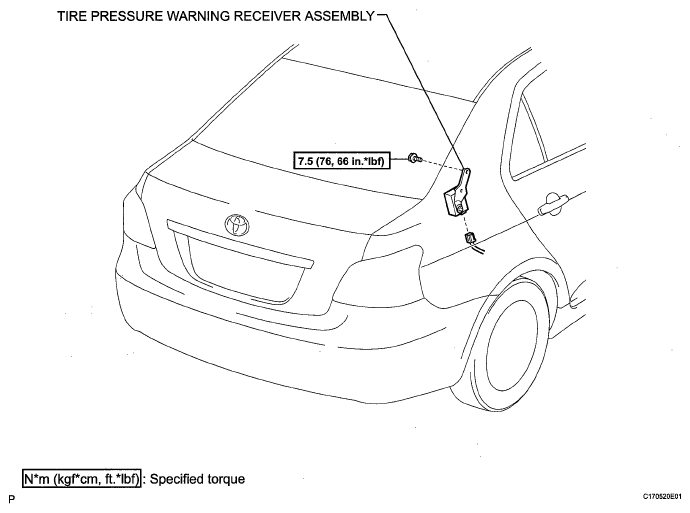

Fig 4: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specification (For Sedan) (4 Of 4)
G05591502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
