TIRE PRESSURE WARNING RECEIVER (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Tire Pressure Warning Receiver Replacement Components (For Hatchback) (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specifications (For Hatchback) (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

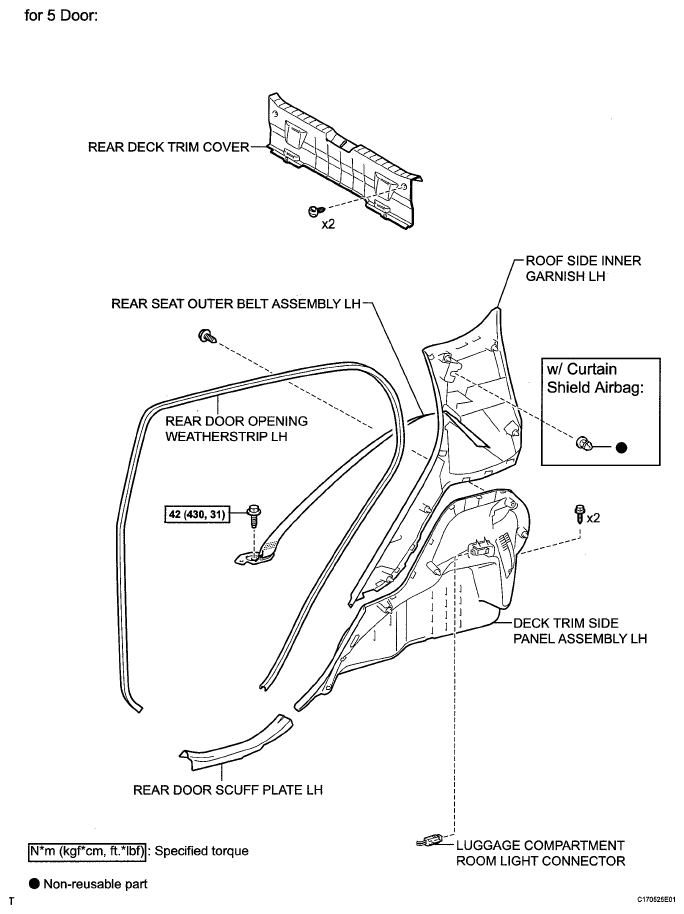

Fig 3: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specification (For Hatchback) (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

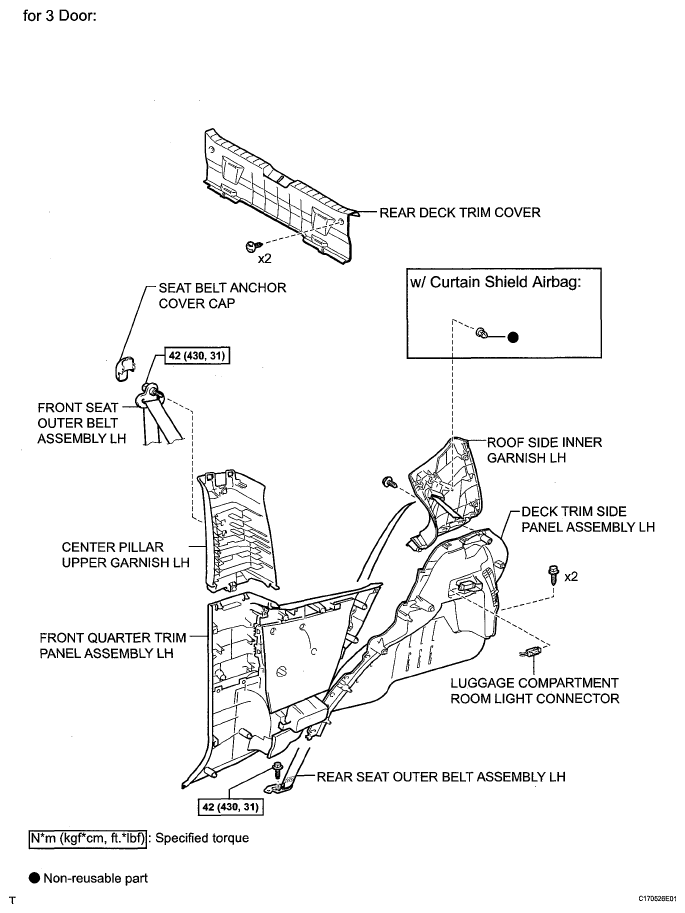

Fig 4: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specifications (For Hatchback) (4 Of 5)

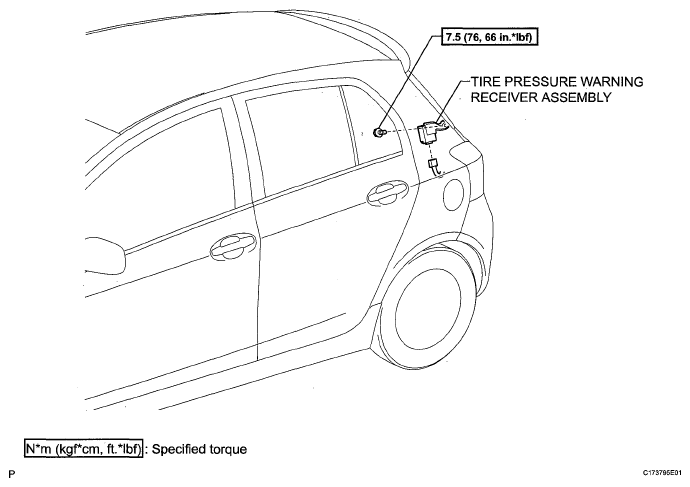

Fig 5: Identifying Tire Pressure Warning Receiver Replacement Components With Torque Specification (For Hatchback) (5 Of 5)
