Warning Buzzer does not Sound: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

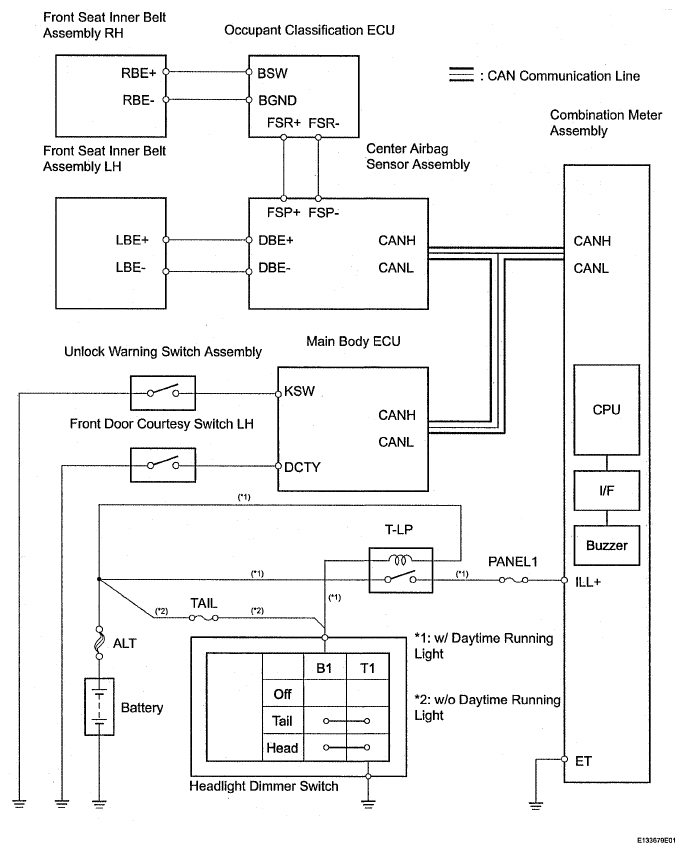

Fig 1: Warning Buzzer Does Not Sound - Wiring Diagram
G04833357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
