METER / GAUGE SYSTEM (for Sedan)
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

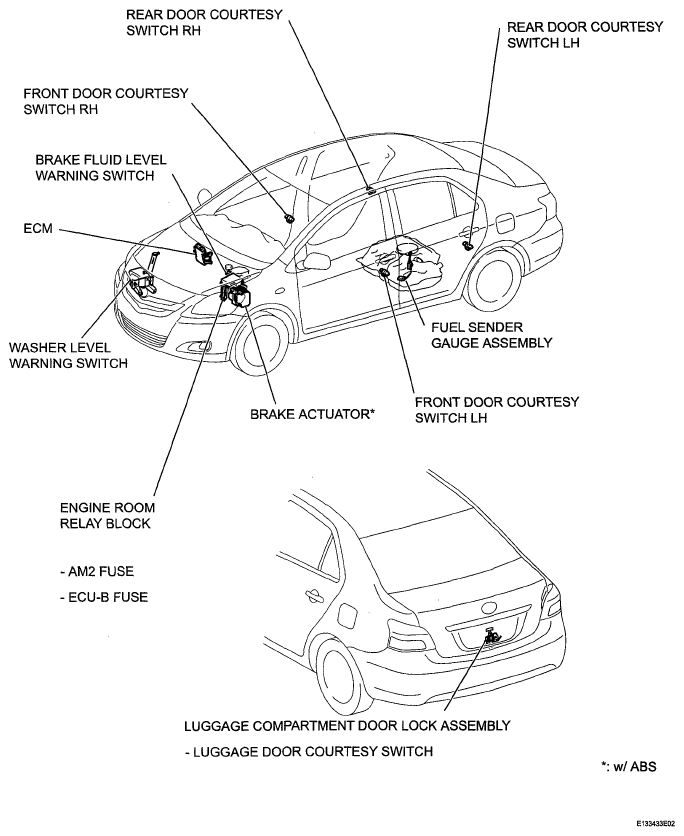

Fig 1: Identifying Meter / Gauge System Replacement Components (For Sedan) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Meter / Gauge System Replacement Components (For Sedan) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

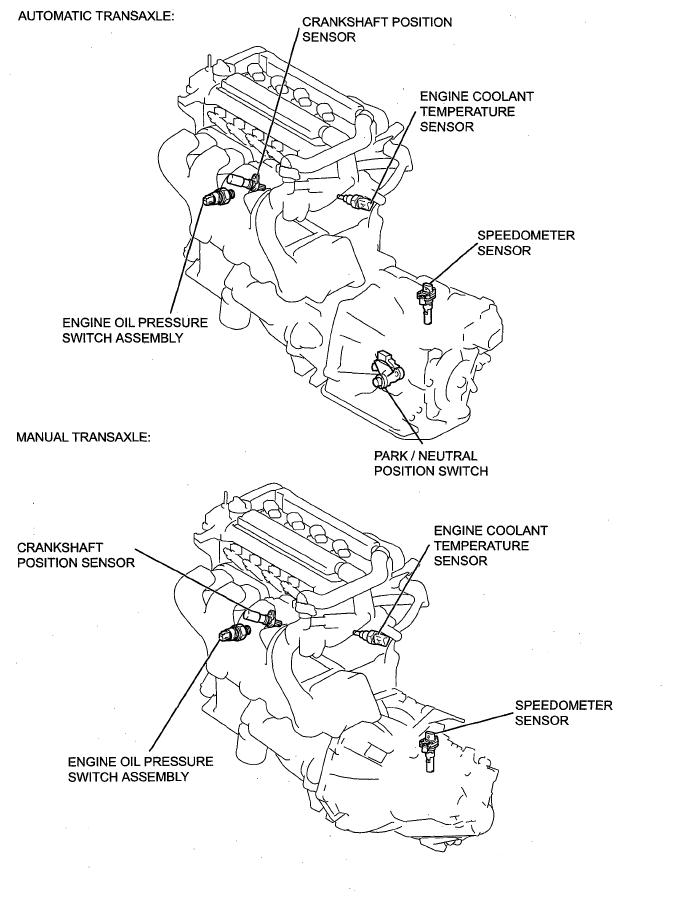

Fig 3: Identifying Meter / Gauge System Replacement Components (For Sedan) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

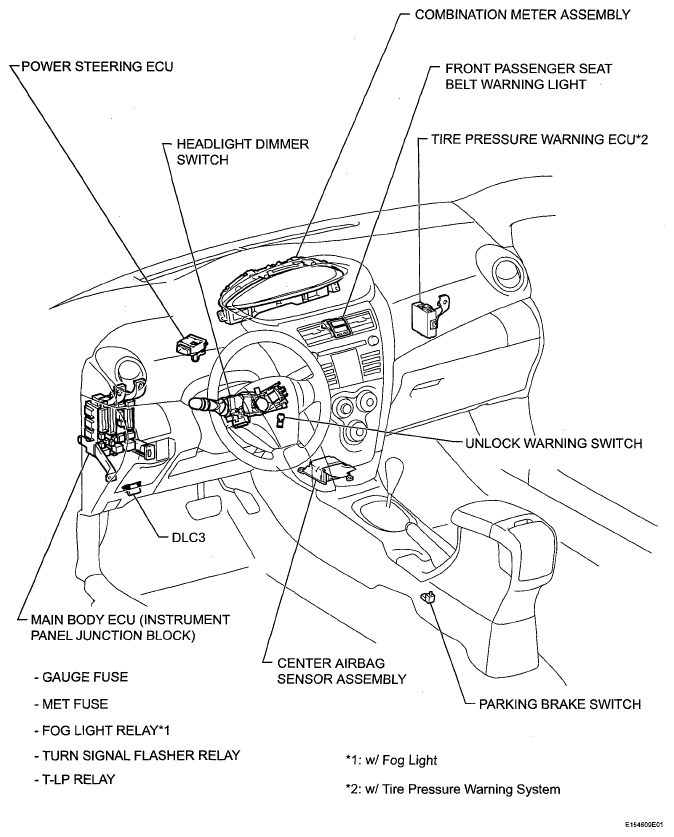

Fig 4: Identifying Meter / Gauge System Replacement Components (For Sedan) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
