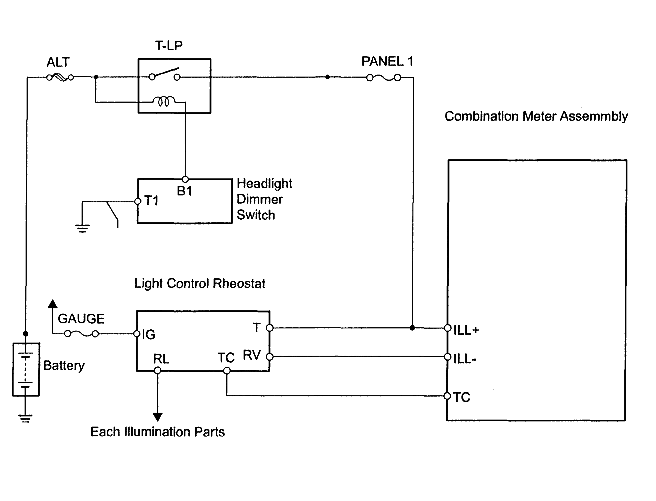

Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
