Section 243 (Meter)
>>
METER / GAUGE SYSTEM (for Hatchback)
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

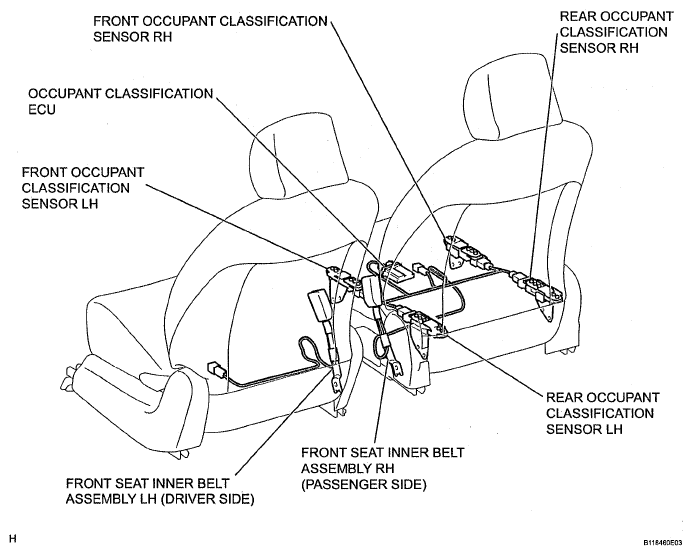

Fig 1: Identifying Meter / Gauge System Replacement Components (For Hatchback) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

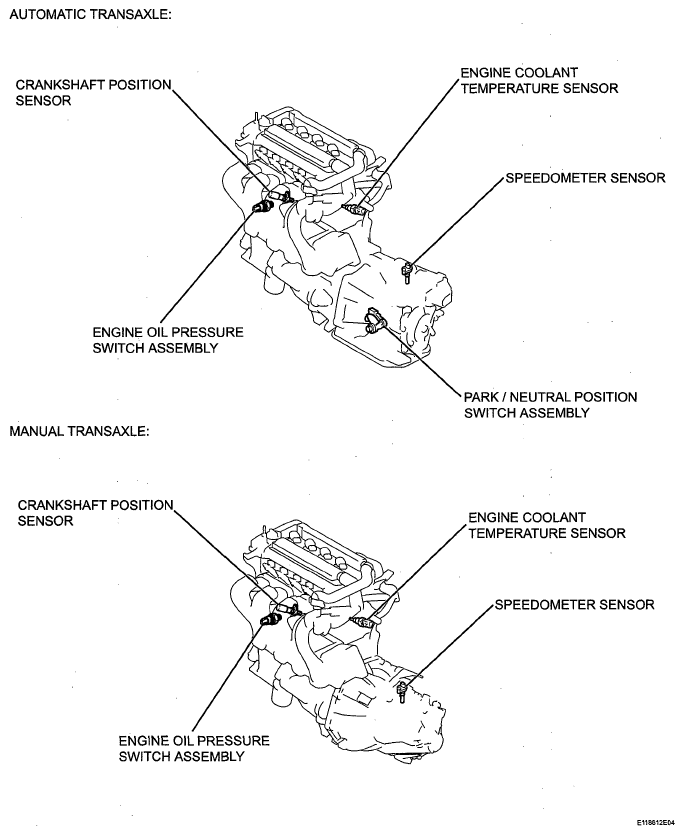

Fig 2: Identifying Meter / Gauge System Replacement Components (For Hatchback) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

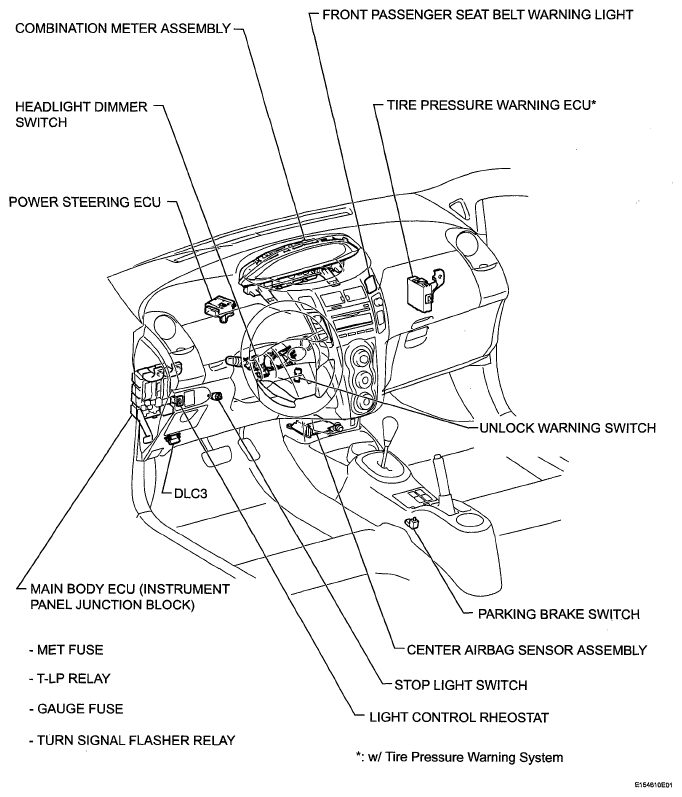

Fig 3: Identifying Meter / Gauge System Replacement Components (For Hatchback) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

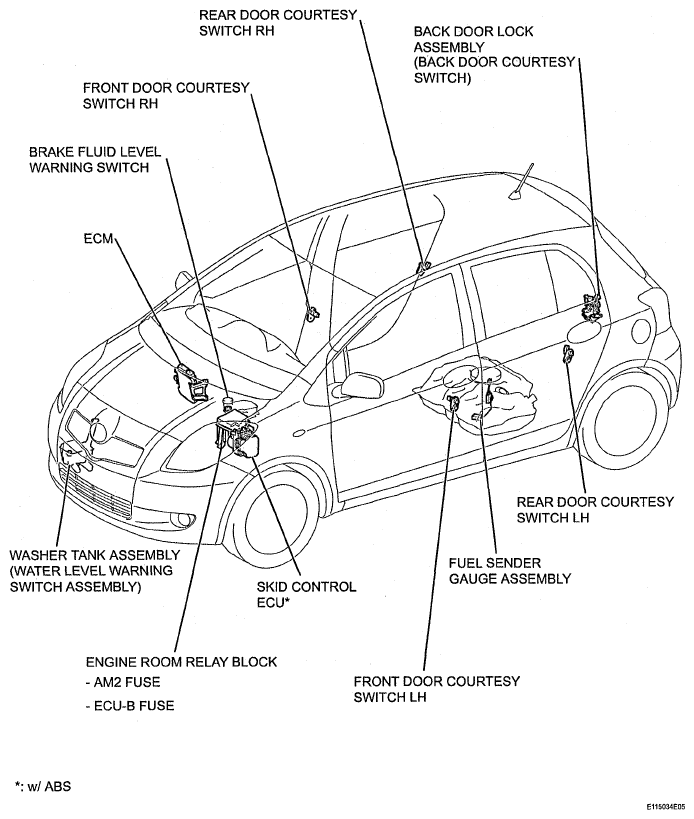

Fig 4: Identifying Meter / Gauge System Replacement Components (For Hatchback) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
