Section 241 (Power Steering)
>>
POWER STEERING GEAR (for Sedan)
>>
Components
POWER STEERING GEAR (for Sedan): Components
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power Steering Gear Replacement With Torque Specification (For Sedan) (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Power Steering Gear Replacement With Torque Specifications (For Sedan) (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

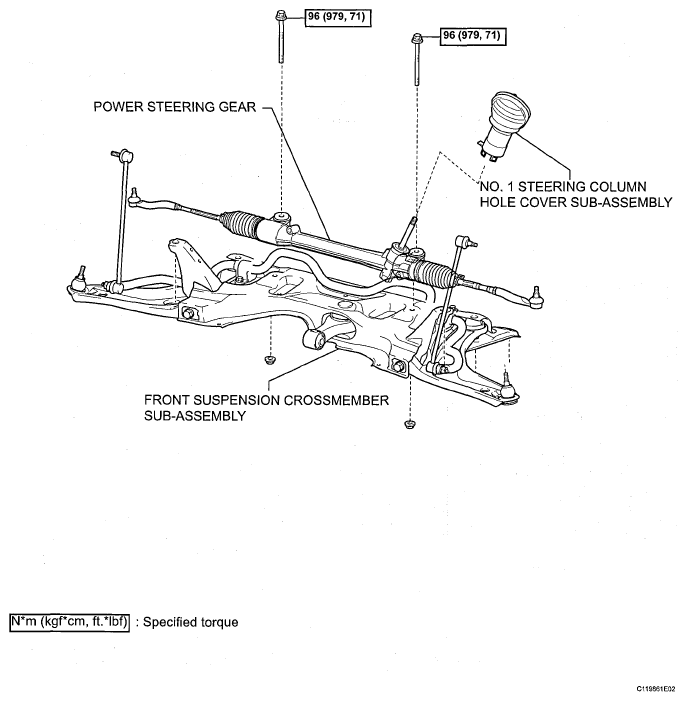

Fig 3: Identifying Power Steering Gear Replacement Components With Torque Specifications (For Sedan) (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

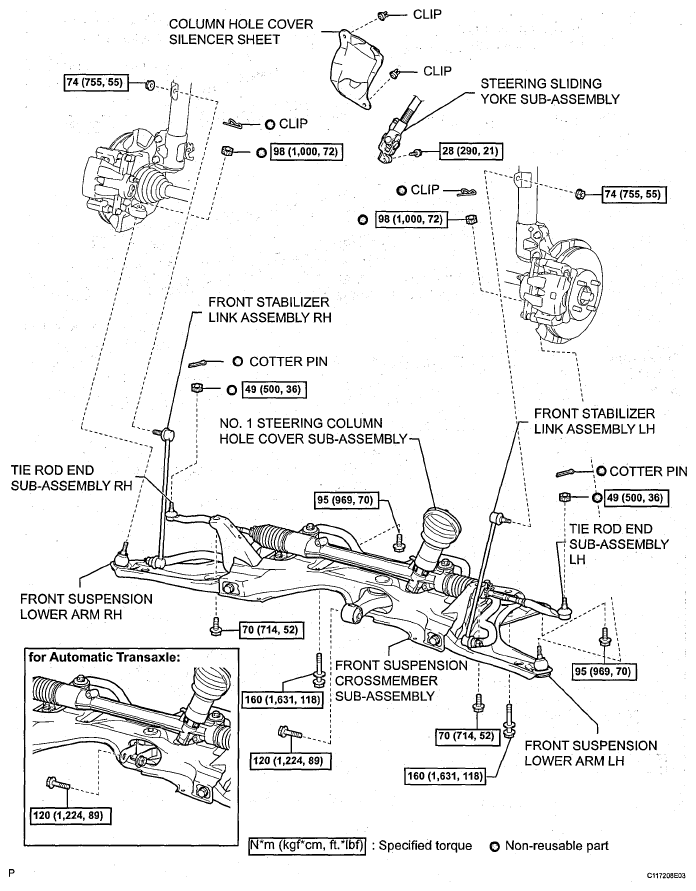

Fig 4: Identifying Power Steering Gear Replacement Components With Torque Specifications (For Sedan) (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
