POWER STEERING GEAR (for Hatchback): Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL POWER STEERING GEAR
    1. Install the power steering gear onto the front suspension crossmember with the 2 bolts and 2 nuts.

      Torque: 96 N*m (979 kgf*cm, 71 ft.*lbf)

      NOTE: Keep the nut from rotating while turning the bolt
      Fig 1: Identifying Power Steering Gear With Nuts And Bolts
      G04832599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

    SST 09670-00010

    1. Support the front suspension crossmember with a tool such as transmission jack.
      2. Fig 2: Identifying Front Suspension Crossmember Sub-Assembly
      G04832601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Provisionally install the front suspension crossmember into the vehicle with the 6 bolts
      BOLT LENGTH SPECIFICATION

      Bolt Underhead Length (mm)
      A 38
      B 99
      C 45
    3. By inserting SST into the datum holes in the front suspension crossmembers RH and LH sides alternately, tighten bolts A, B and C on both sides to the specified torque, in several steps.

      Torque:

      70 N*m (714 kgf*cm, 52 ft.*lbf) for Bolt A

      160 N*m (1,631 kgf*cm, 118 ft.*lbf) for Bolt B

      95 N*m (969 kgf*cm, 70 ft.*lbf) for Bolt C

      NOTE:
      • Insert SST into the datum holes in a vertical orientation.
      • If SST can not be inserted into the datum holes vertically, loosen all the bolts and then insert SST again.

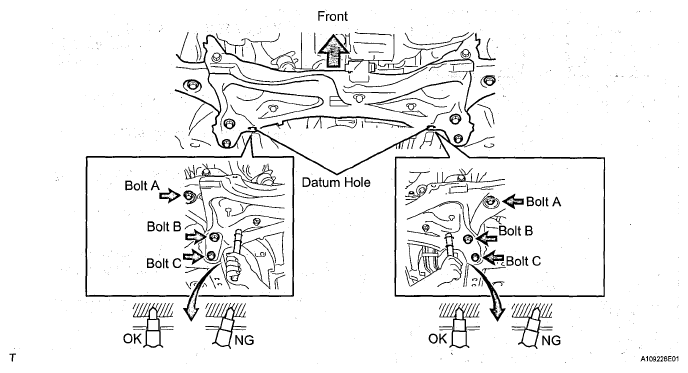

        Fig 3: Identifying SST Into Datum Holes
        G04832602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the engine moving control rod with the bolt.

      Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

      Fig 4: Identifying Engine Moving Control Rod
      G04832622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT SUSPENSION LOWER ARM LH  (See INSTALLATION )
  4. INSTALL FRONT SUSPENSION LOWER ARM RH

    HINT:

    Use the same procedure for the LH side.

  5. INSTALL FRONT STABILIZER LINK ASSEMBLY LH  (See INSTALLATION )
  6. INSTALL FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  7. INSTALL TIE ROD END SUB-ASSEMBLY LH  (See INSTALLATION )
  8. INSTALL TIE ROD END SUB-ASSEMBLY RH

    HINT:

    Use the same procedure for the LH side.

  9. INSTALL FRONT WHEEL

    Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

  10. INSTALL NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. Install clip B onto the body portion and install No. 1 steering column hole cover sub-assembly onto the body portion with clip A.
      NOTE: Make sure that the lip portion of No. 1 steering column hole cover sub-assembly is not damaged.
      Fig 5: Identifying No. 1 Steering Column Hole Cover Sub-Assembly With Clips
      G04832614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL STEERING SLIDING YOKE SUB-ASSEMBLY
    1. Align the matchmarks and install the sliding yoke onto the intermediate shaft.

      Torque: 28 N*m (290 kgf*cm, 21 ft.*lbf)

    2. Tighten bolt A.

      Torque: 28 N*m (290 kgf*cm, 21 ft.*lbf)

      Fig 6: Identifying Matchmarks On Sliding Yoke Of Steering Intermediate Shaft Assembly And Power Steering
      G04832594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover silencer sheet with the 2 clips.
      2. Fig 7: Identifying Column Hole Cover Silencer Sheet
      G04832461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the floor carpet
  13. INSTALL COWL TOP PANEL OUTER  (See INSTALLATION )
  14. INSTALL COWL TO REGISTER DUCT SUB-ASSEMBLY  (See INSTALLATION )
  15. INSTALL WINDSHIELD WIPER MOTOR AND LINK  (See INSTALLATION )
  16. INSTALL COWL TOP VENTILATOR LOUVER LH  (See INSTALLATION )
  17. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL HOOD TO COWL TOP SEAL  (See INSTALLATION )
  19. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  (See INSTALLATION )
  20. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  (See INSTALLATION )
  21. INSTALL FRONT WIPER ARM HEAD CAP  (See INSTALLATION )
  22. TEMPORARILY TIGHTEN HOOD SUB-ASSEMBLY
    1. Provisionally install the hood with the 4 bolts.

      HINT:

      Tighten the bolts to the specified torque after inspecting the hood.

  23. INSPECT HOOD SUB-ASSEMBLY  (See ADJUSTMENT )
  24. ADJUST HOOD SUB-ASSEMBLY  (See ADJUSTMENT )
  25. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  26. POSITION FRONT WHEELS FACING STRAIGHT AHEAD
  27. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

    (See ADJUSTMENT )

  28. CHECK ABS SPEED SENSOR SIGNAL

    (See CHECK FOR INTERMITTENT PROBLEMS )
