POWER STEERING ECU (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Power Steering ECU Replacement Components (For Sedan) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

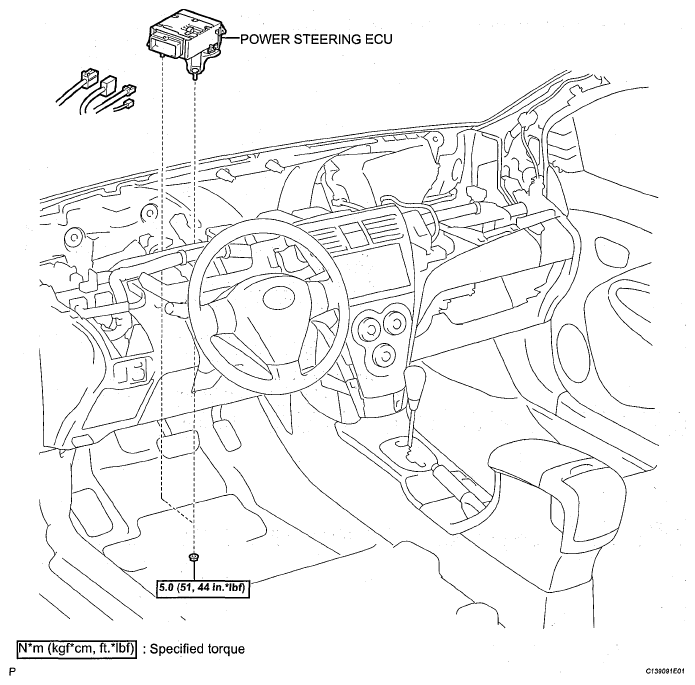

Fig 2: Identifying Power Steering ECU Replacement Components With Torque Specification (For Sedan) (2 Of 3)

Fig 3: Identifying Power Steering ECU Replacement Components With Torque Specification (For Sedan) (3 Of 3)
