System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

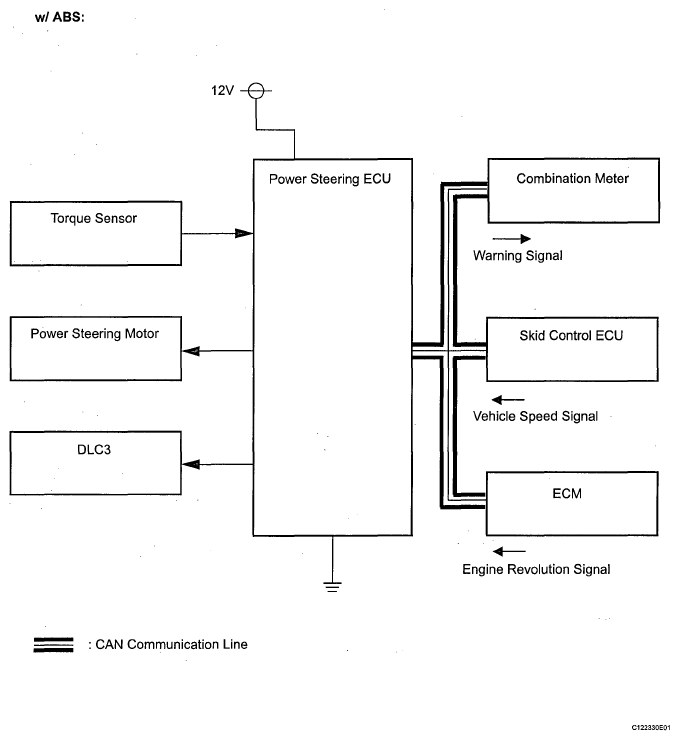

Fig 1: Electronic Power Steering System Diagram (1 Of 2)
G04832542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

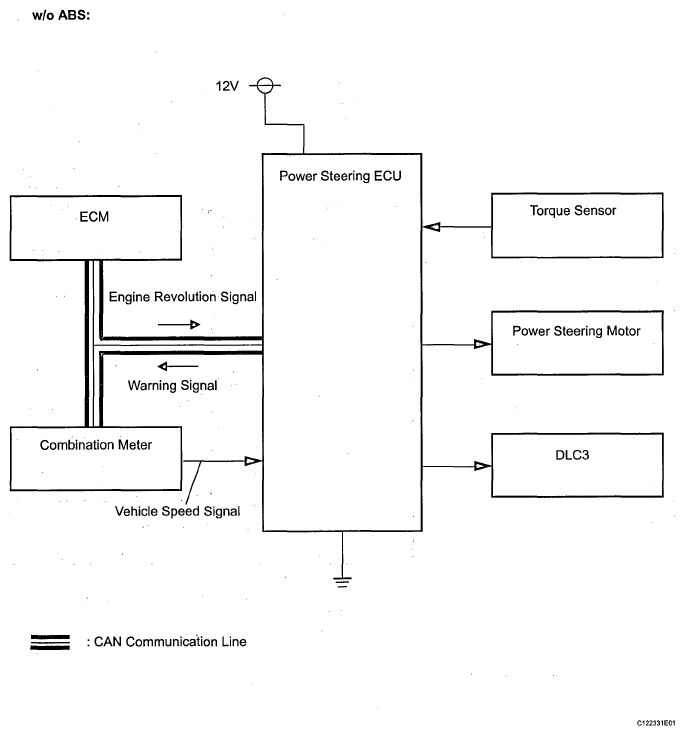

Fig 2: Electronic Power Steering System Diagram (2 Of 2)
G04832543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
