Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

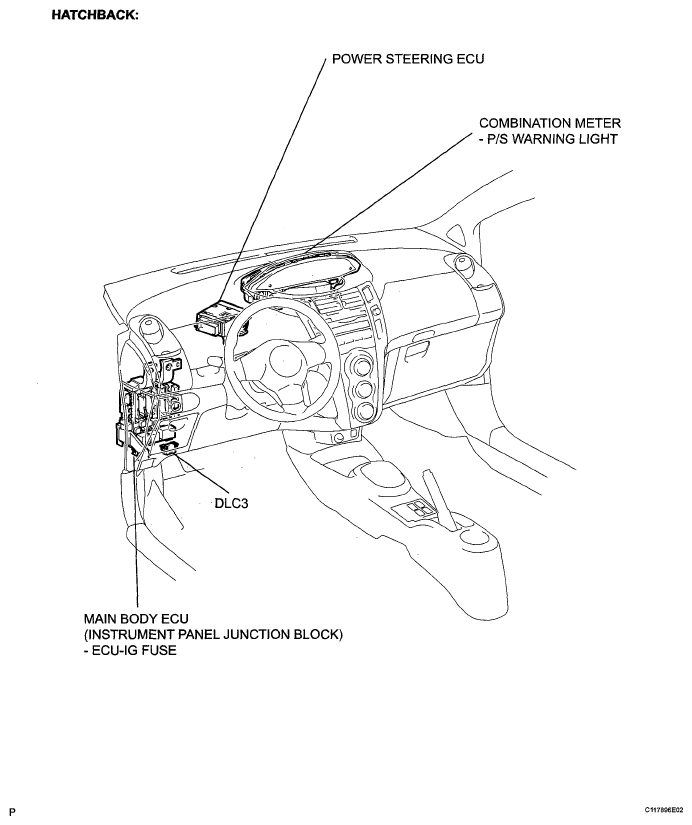

Fig 1: Identifying Electronic Power Steering System Parts Location (Hatchback - 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

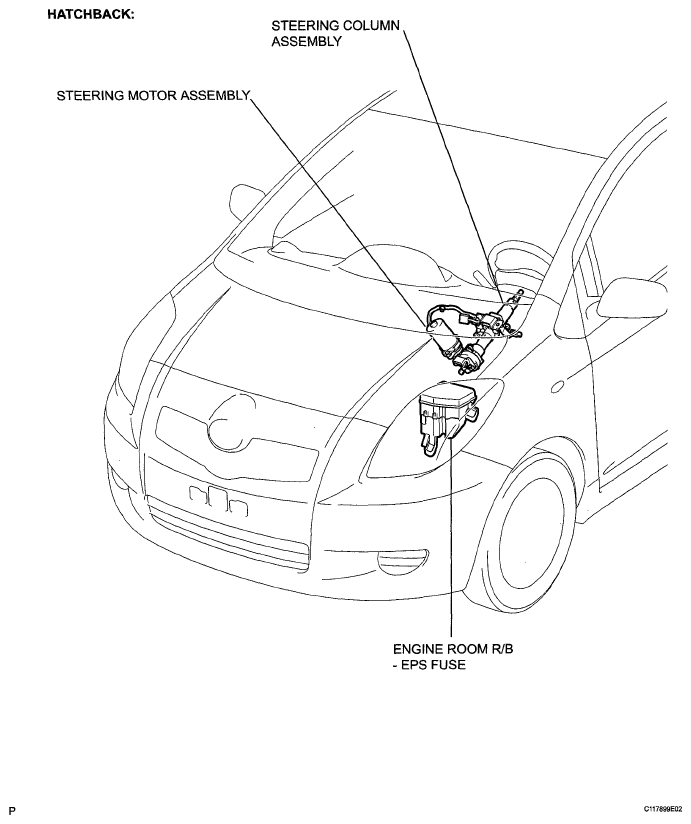

Fig 2: Identifying Electronic Power Steering System Parts Location (Hatchback - 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

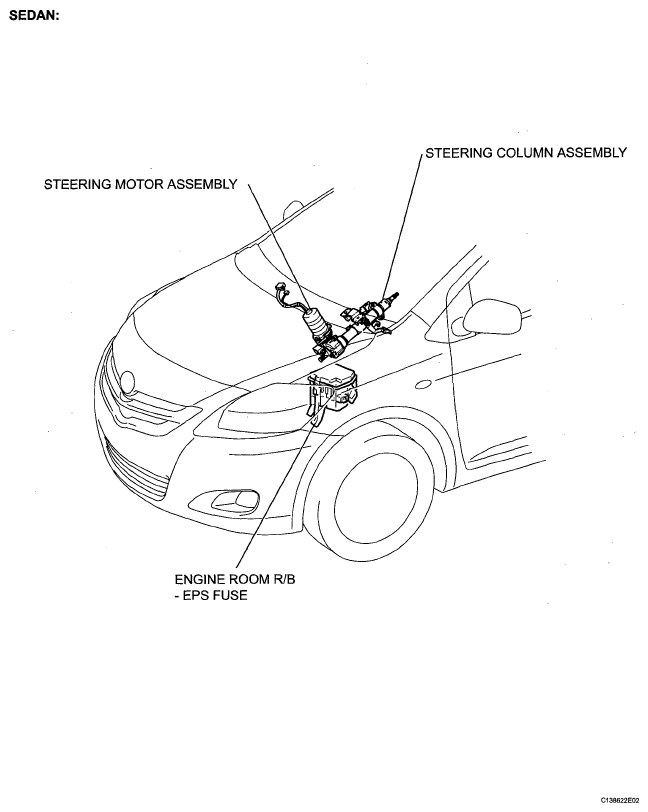

Fig 3: Identifying Electronic Power Steering System Parts Location (Sedan - 1 Of 2)

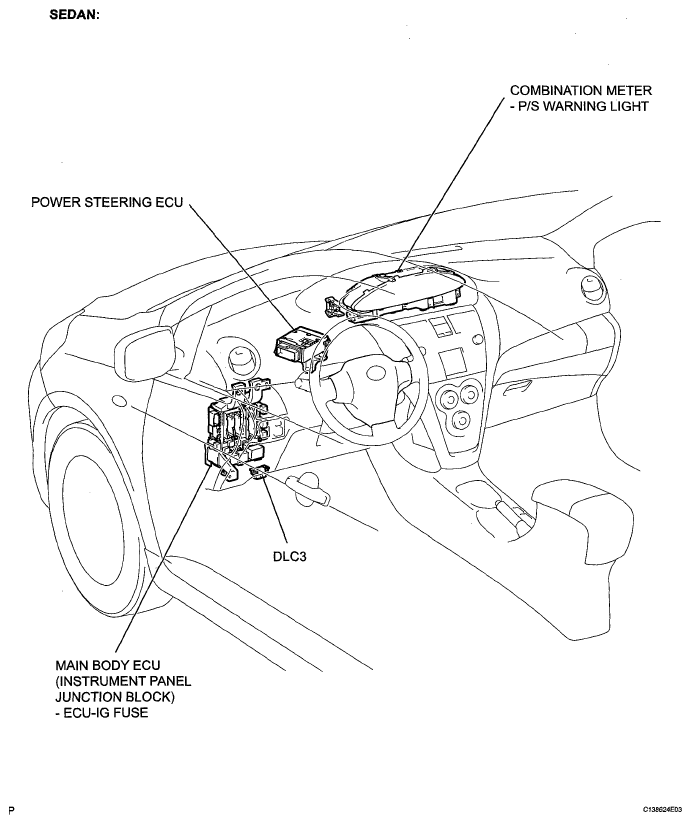

Fig 4: Identifying Electronic Power Steering System Parts Location (Sedan - 2 Of 2)
