Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

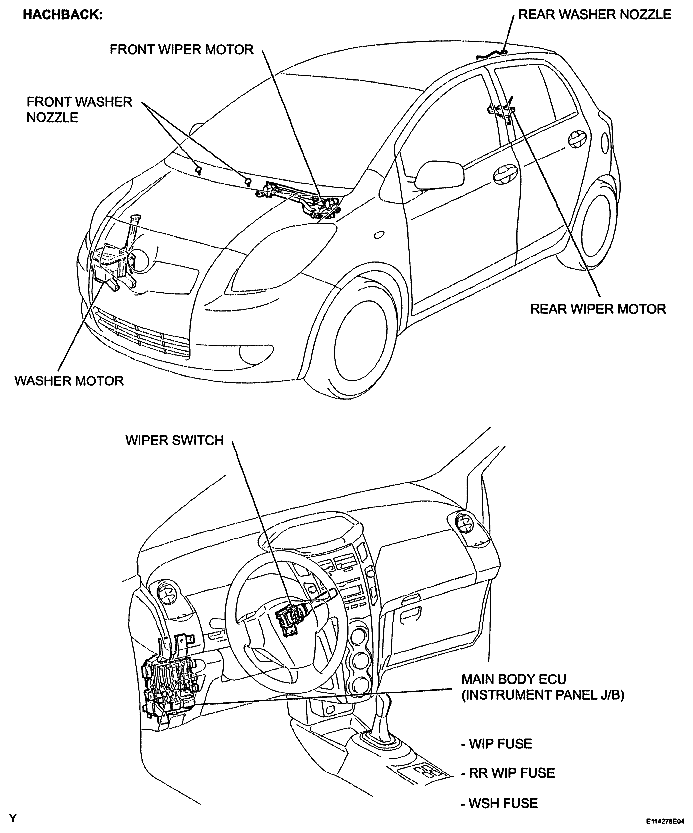

Fig 1: Identifying Wiper And Washer System Replacement Components (1 Of 2)
G04833012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

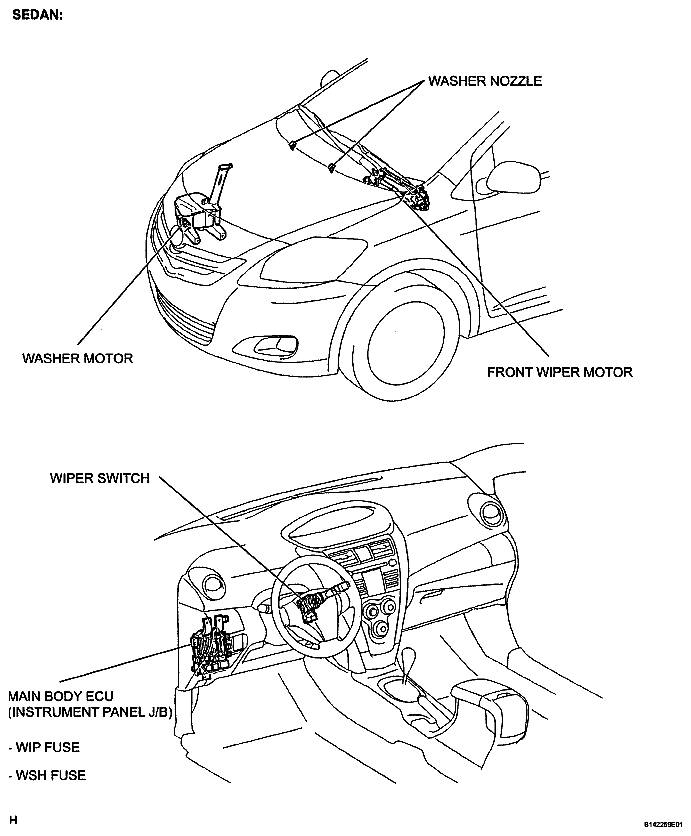

Fig 2: Identifying Wiper And Washer System Replacement Components (2 Of 2)
G04833013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
