On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT WASHER NOZZLE
- Start the engine.
- Check where the washer fluid hits the windshield.
Standard:

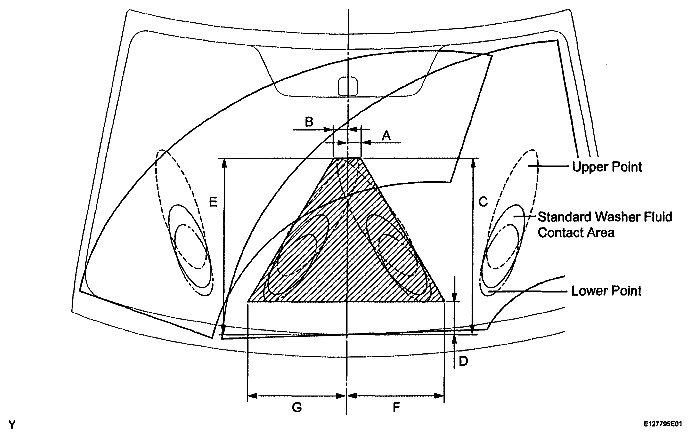

Washer fluid hits the windshield in the areas shown in the illustration.
Specification
AREA MEASUREMENTArea Measurement A 29.2 mm (1.15 in.) B 26.6 mm (1.05 in.) C 427.8 mm (16.84 in.) D 79.9 mm (3.15 in.) E 426.2 mm (16.78 in.) F 234.8 mm (9.24 in.) G 234.5 mm (9.23 in.)
