On-Vehicle Inspection

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT WASHER NOZZLE

Start the engine.

Check where the washer fluid hits the windshield.

Standard:

Washer fluid hits the windshield in the areas shown in the illustration.

Front:

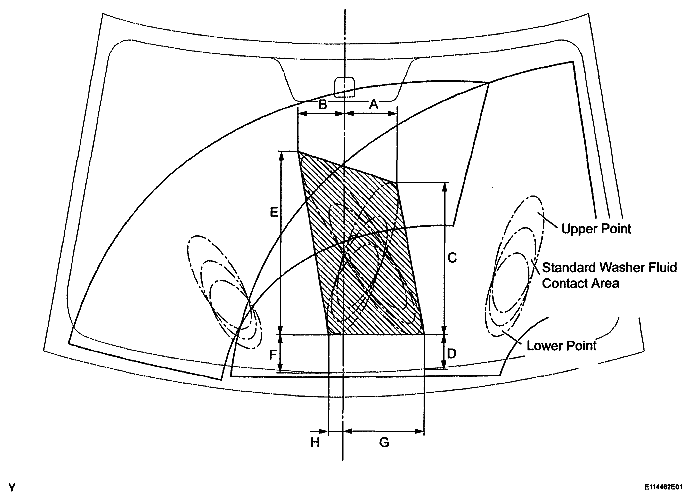

Fig 1: Identifying Washer Nozzle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Specification

AREA MEASUREMENT

Area	Measurement
A	115 mm (4.53 in.)
B	100 mm (3.94 in.)
C	375 mm (14.76 in.)
D	85 mm (3.35 in.)
E	454 mm (17.87 in.)
F	88 mm (3.46 in.)
G	178 mm (7.01 in.)
H	31 mm (1.22 in.)

Rear:

Fig 2: Identifying Washer Nozzle (Rear)

Specification

AREA MEASUREMENT

Area	Measurement
A	100 mm (3.94 in.)
B	100 mm (3.94 in.)
