WASHER LEVEL WARNING SWITCH (for Sedan): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Washer Level Warning Switch Replacement Components For Sedan (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

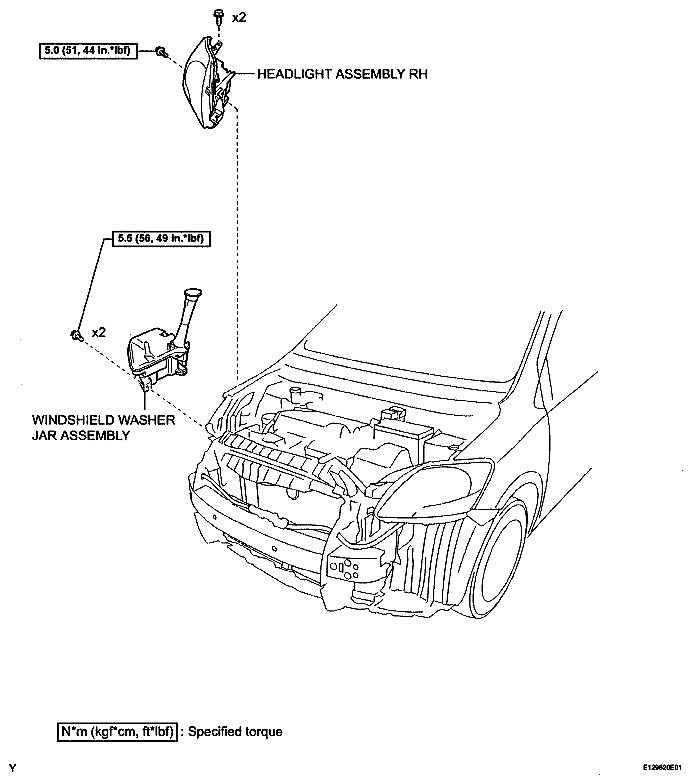

Fig 2: Identifying Washer Level Warning Switch Replacement Components For Sedan With Torque Specifications (2 Of 3)

Fig 3: Identifying Washer Level Warning Switch Replacement Components For Sedan (3 Of 3)
