WASHER LEVEL WARNING SWITCH (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

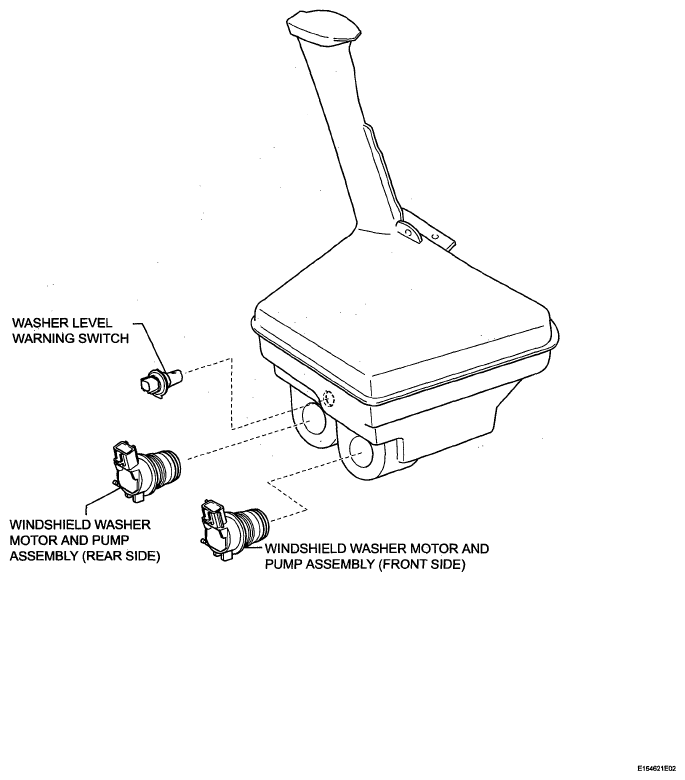

Fig 1: Identifying Washer Level Warning Switch For Hatchback (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

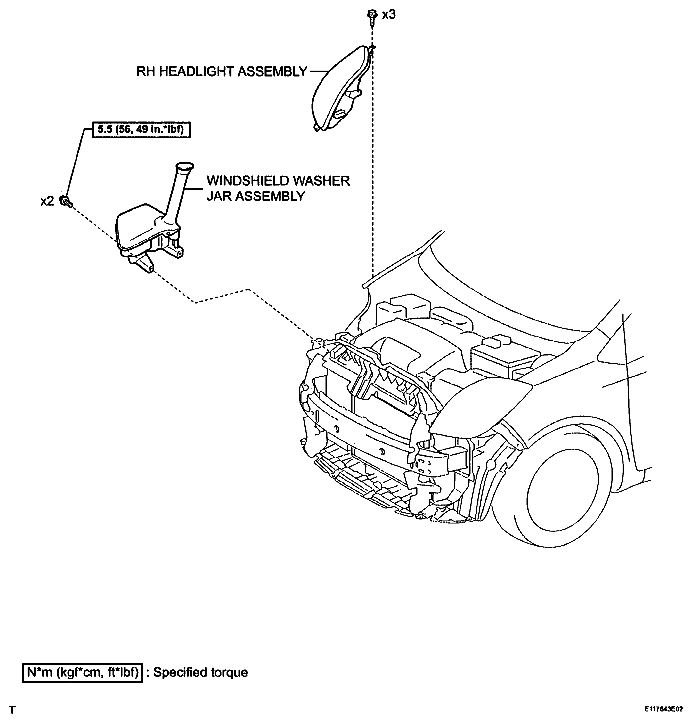

Fig 2: Washer Level Warning Switch For Hatchback With Torque Specification (2 Of 3)

Fig 3: Identifying Washer Level Warning Switch For Hatchback (3 Of 3)
