REAR WIPER MOTOR (for Hatchback): Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

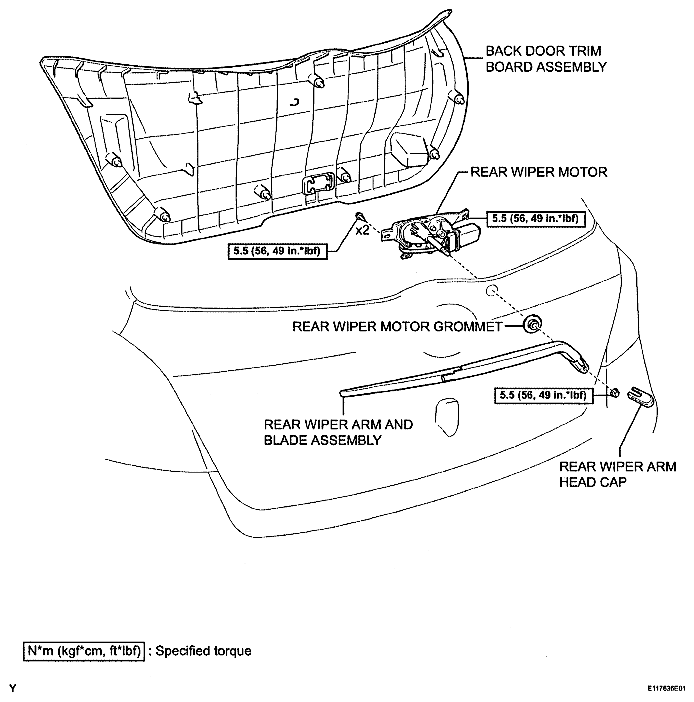

Fig 1: Rear Wiper Motor Replacement Components With Torque Specifications (For Hatchback)
G04835013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
