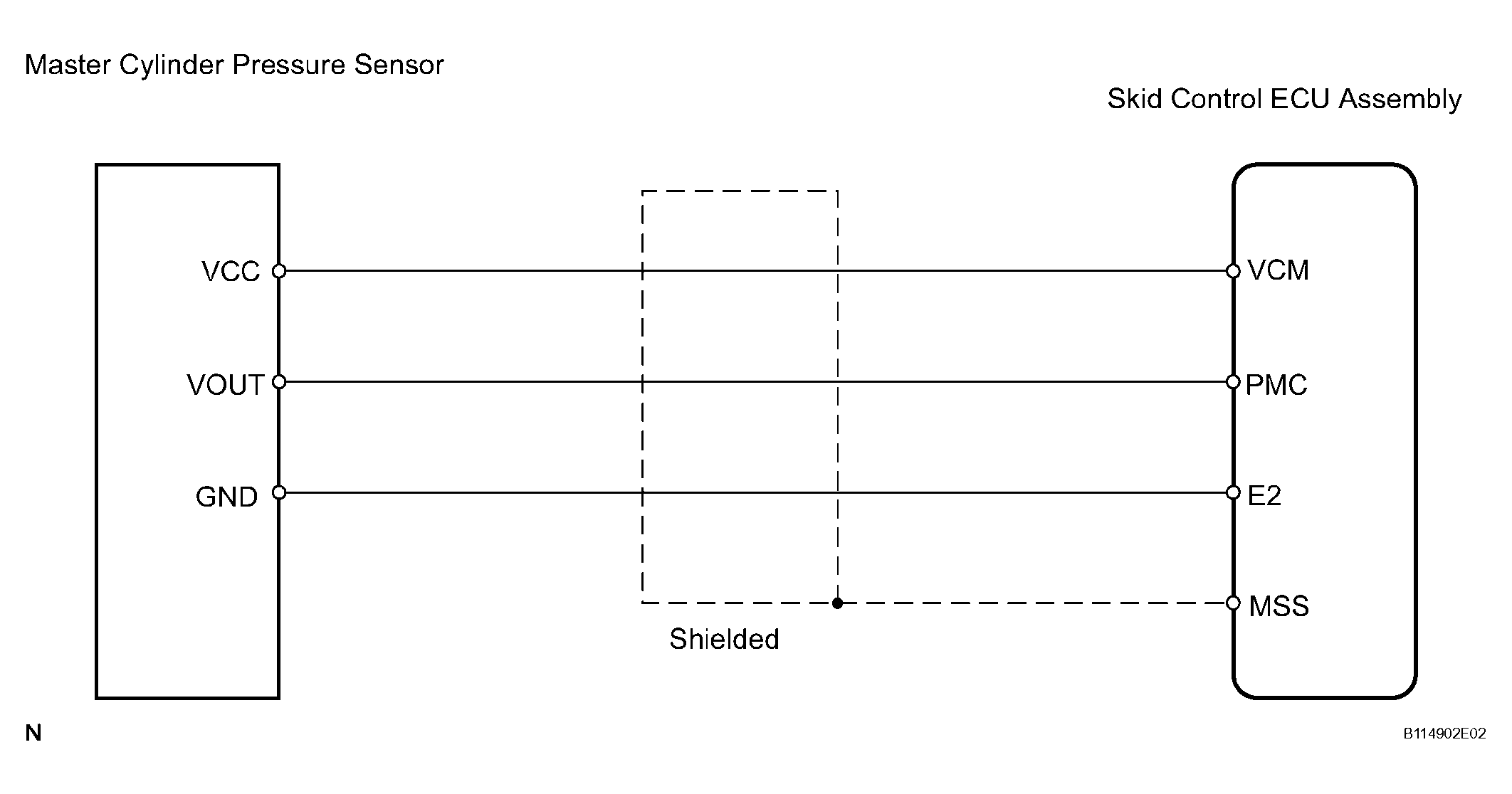

DTC C1246/46: Master Cylinder Pressure Sensor Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
