DTC C1233/33, C1234/34: Open or Short Circuit in Yaw Rate Sensor Circuit; Yaw Rate Sensor Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

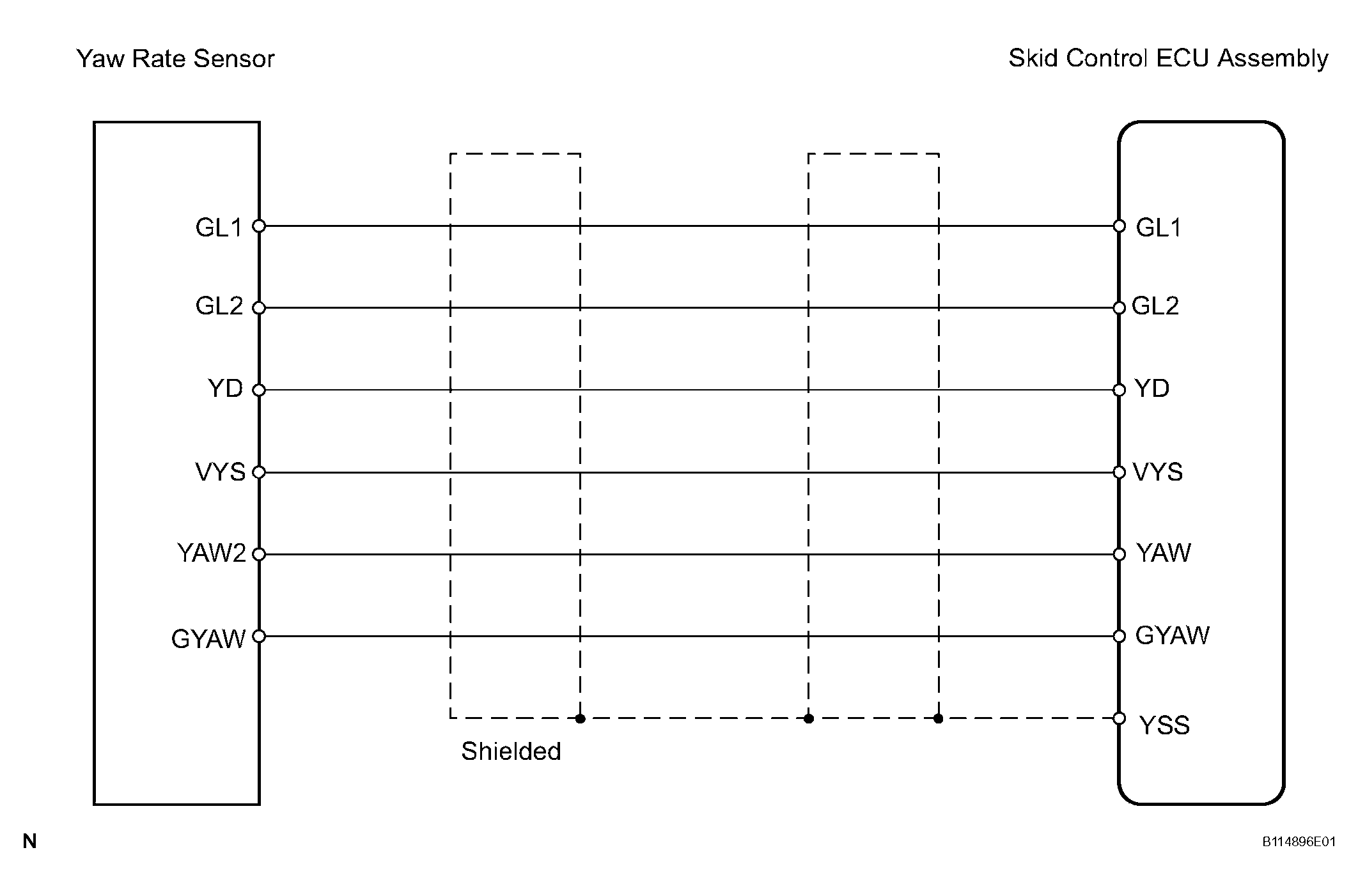

Fig 1: Yaw Rate Sensor Wiring Diagram
G04440345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
