DTC C1210/36: Zero Point Calibration of Yaw Rate Sensor Undone: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

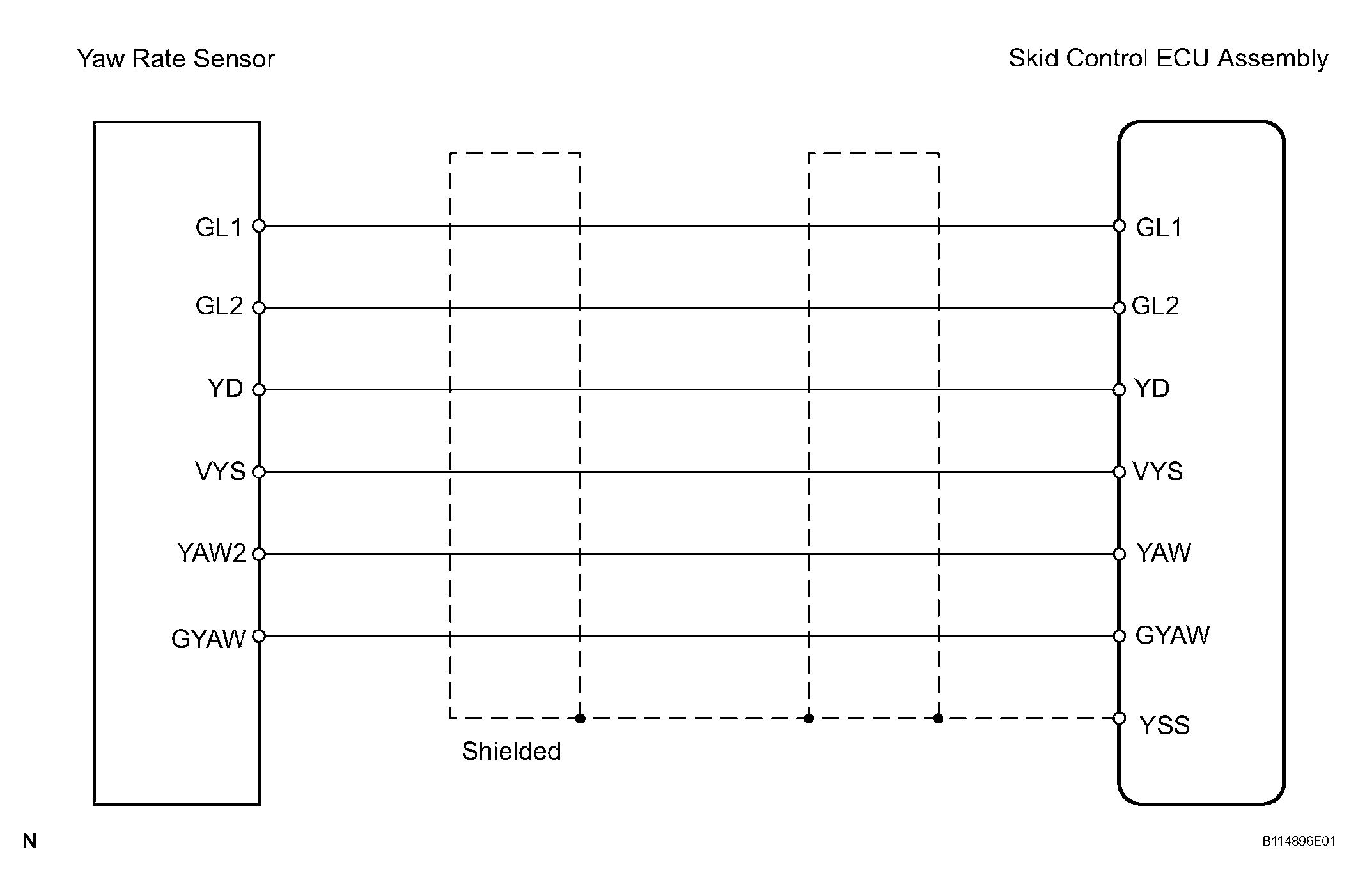

Fig 1: Zero Point Calibration Of Yaw Rate Sensor Wiring Diagram
G04440337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
