Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK WIRE HARNESS (SKID CONTROL ECU ASSEMBLY - TRANSLATE ECU)
    1. Disconnect the A42 and T29 ECU connectors.
    2. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      A42-14 (ENG+) - T29-14 (ENG+) Below 1 Ω
      A42-16 (TRC-) - T29-17 (TRC-) Below 1 Ω
      A42-22 (ENG-) - T29-15 (ENG-) Below 1 Ω
      A42-24 (TRC+) - T29-16 (TRC+) Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

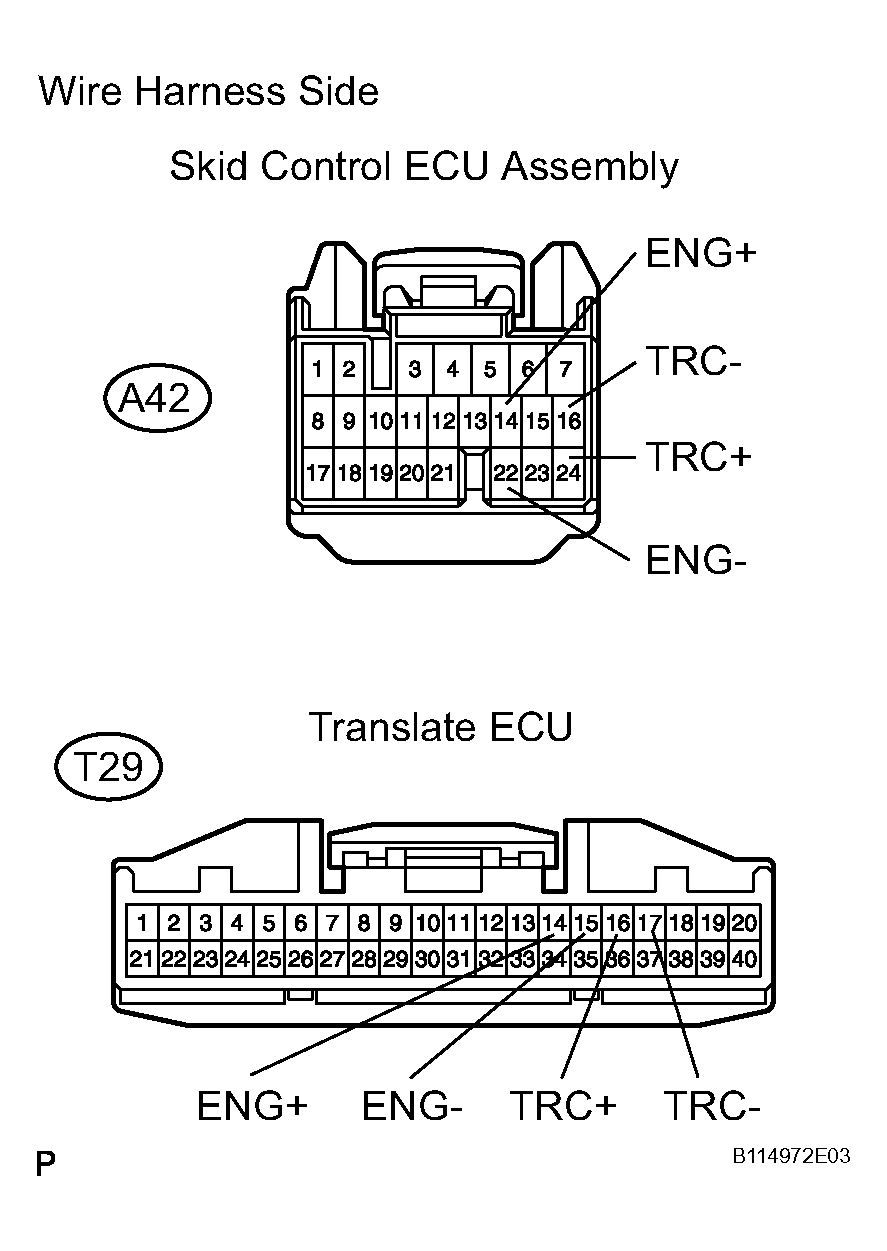

    Fig 1: Identifying A42 and T29 ECU connectors
    G04440335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO TO NEXT STEP

  2. CHECK ECU COMMUNICATION (SKID CONTROL ECU - TRANSLATE ECU)
    1. Remove the skid control ECU.
    2. Connect an oscilloscope to terminals ENG+ and ENG- or TRC+ and TRC- of skid control ECU.
    3. Start the engine, and check the signal waveform.

      OK: A waveform is output as shown.

    NG: REPLACE SKID CONTROL ECU

    OK: REPLACE TRANSLATE ECU

  3. Fig 2: Identifying Normal Signal Waveform
    G04440336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
