DTC C0278/11, C0279/12: Open or Short Circuit in ABS Solenoid Relay Circuit; Short to B+ in ABS Solenoid Relay Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

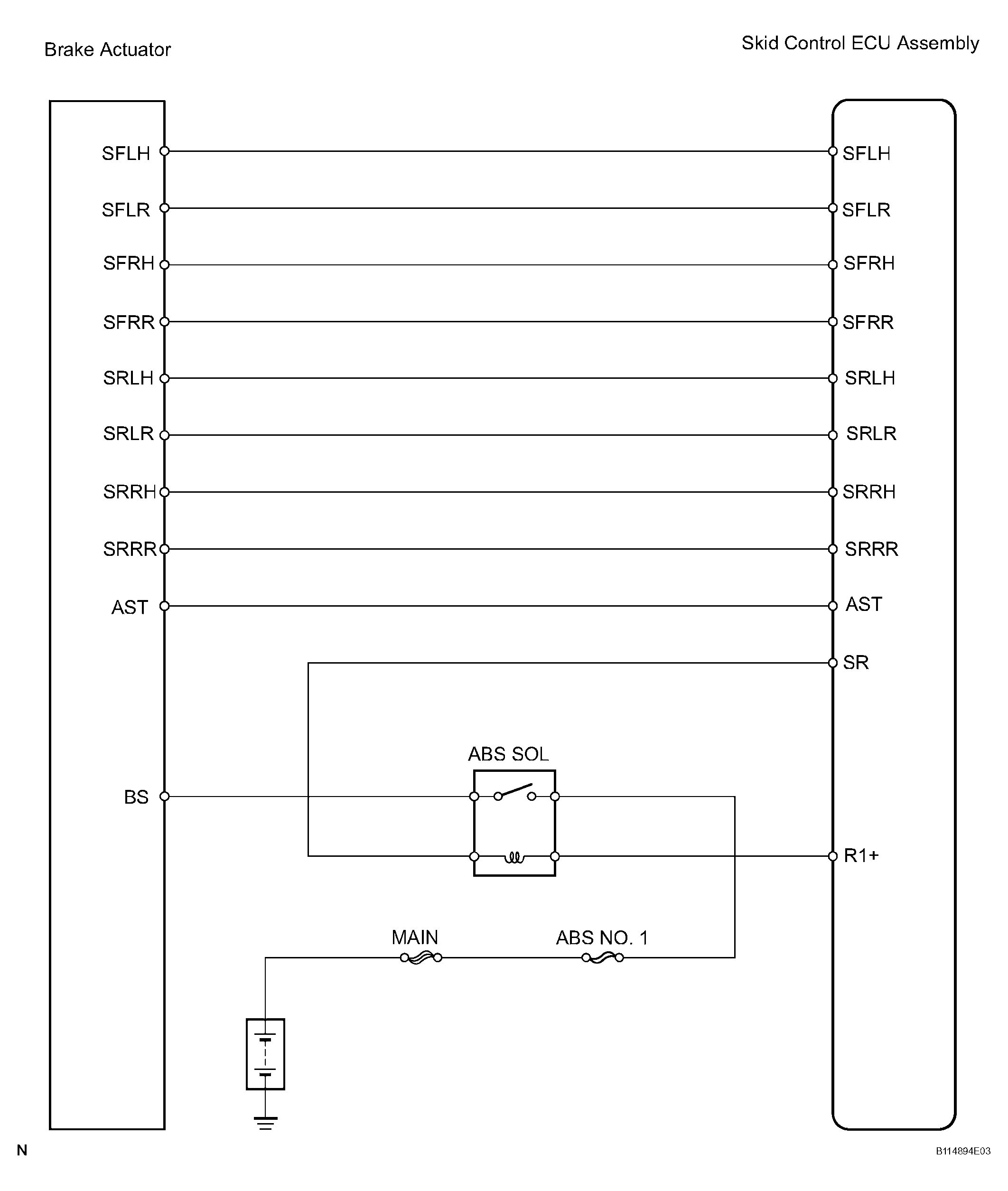

Fig 1: Open Or Short Circuit In ABS Solenoid Relay Wiring Diagram
G04440330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
