Rear Speed Sensor: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE REAR WHEEL
REMOVE REAR SPEED SENSOR LH
1. Disconnect the speed sensor connector.
2. Remove the clamp bolt from the upper control bracket.
3. Remove the 6 resin clips holding the sensor wire harness to the frame, upper control arm and axle housing.

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and speed sensor.
  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.

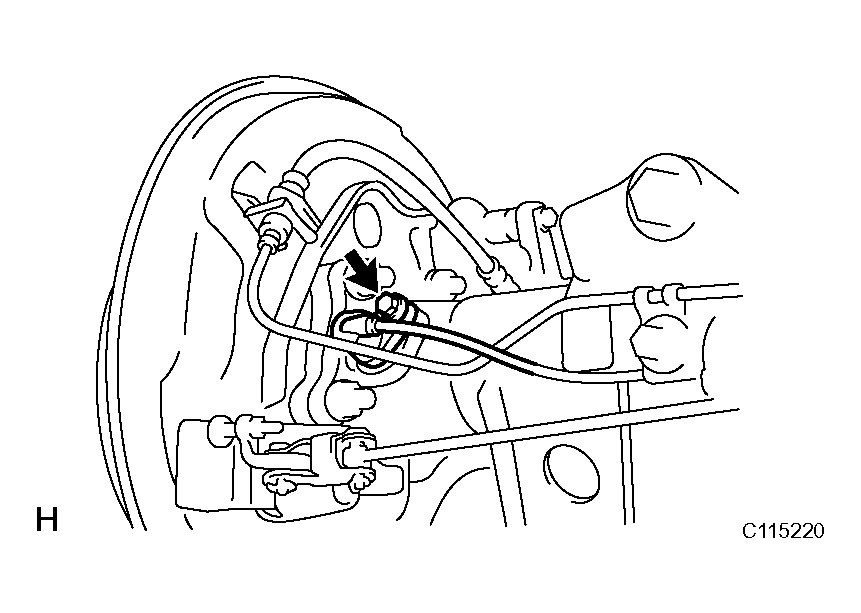

  Fig 2: Removing Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
