Front Speed Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

INSTALL FRONT SPEED SENSOR LH
1. Install the speed sensor to the steering knuckle with the bolt.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE: Keep the sensor tip and sensor installation hole free from foreign matter.
2. Install the sensor harness to the steering knuckle and upper arm with the resin clip and 4 clamp bolts.
  Torque: 13 N*m (130 kgf*cm, 9 ft.*lbf)

  NOTE: Do not twist the sensor wire when installing it.

  Fig 1: Installing Speed Sensor To Steering Knuckle With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the speed sensor connector.
  NOTE: Do not twist the sensor wire when installing it.
INSTALL FRONT WHEEL
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

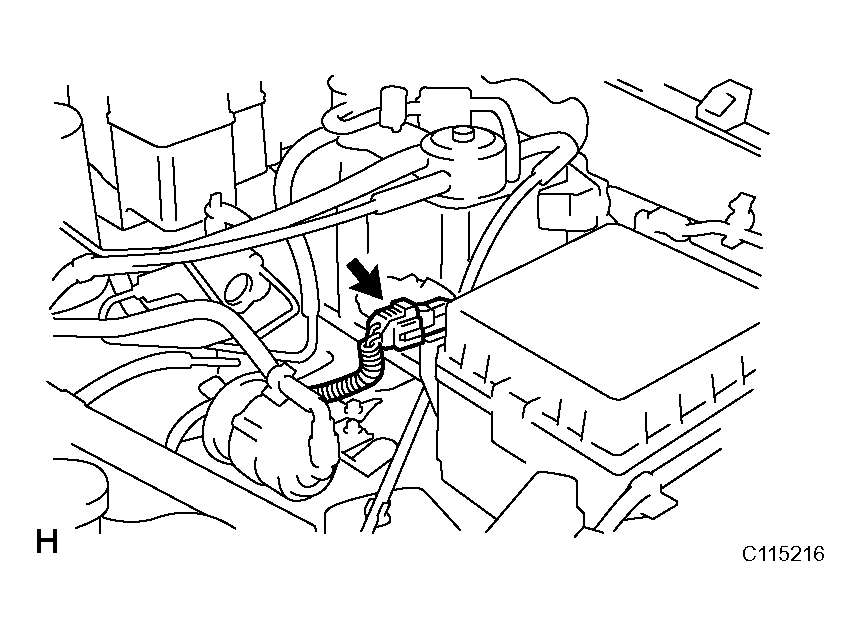

  Fig 2: Connecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK ABS SPEED SENSOR SIGNAL
1. Check the ABS speed sensor signal (see DTC C0278/11, C0279/12: OPEN OR SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT; SHORT TO B+ IN ABS SOLENOID RELAY CIRCUIT ).
