How To Determine Bolt Strength

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Bolt Type

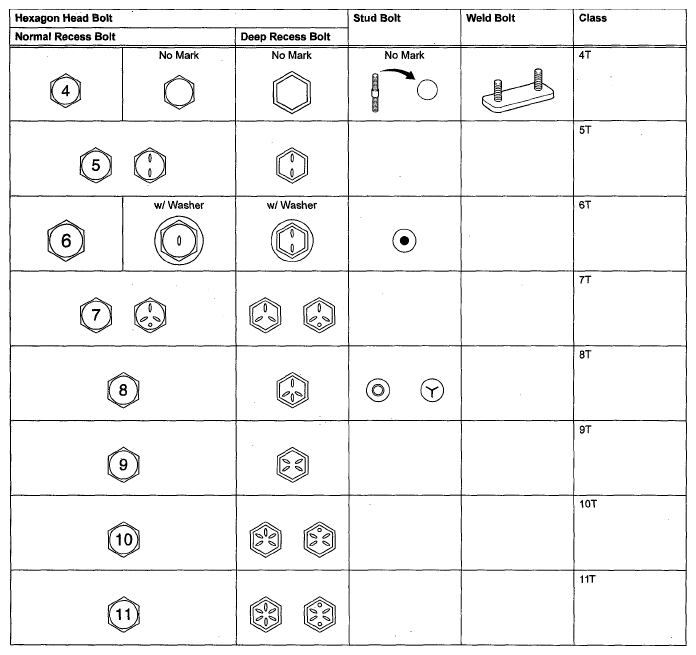

Fig 1: Identifying Standart Bolt Chart
G05589024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
