Section 238 (Engine Control System (1NZ-FE))
>>
SFI System
>>
System Diagram
System Diagram
WARNING:
This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

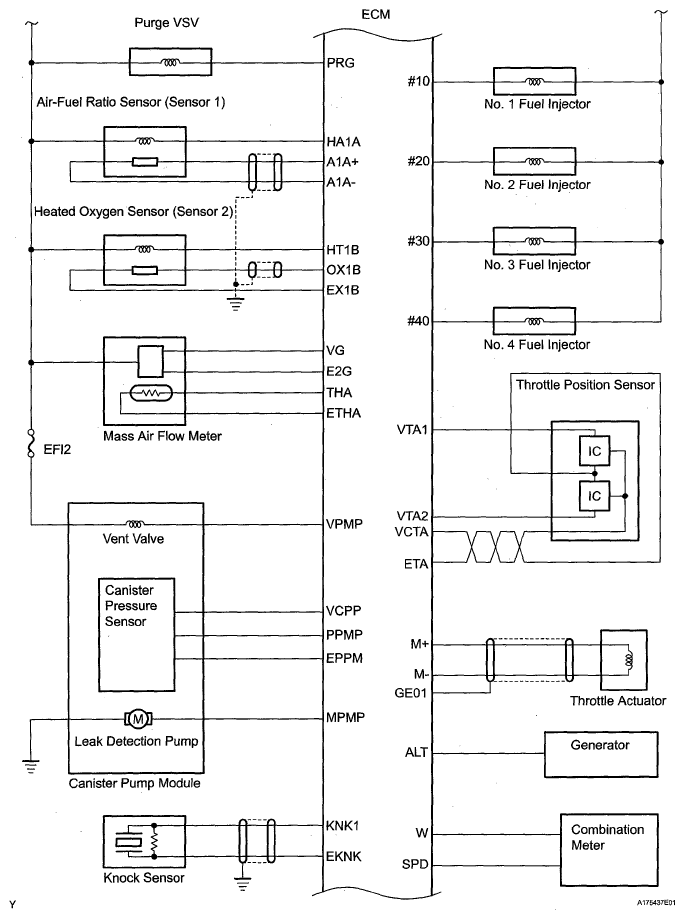

Fig 1: Engine Control System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

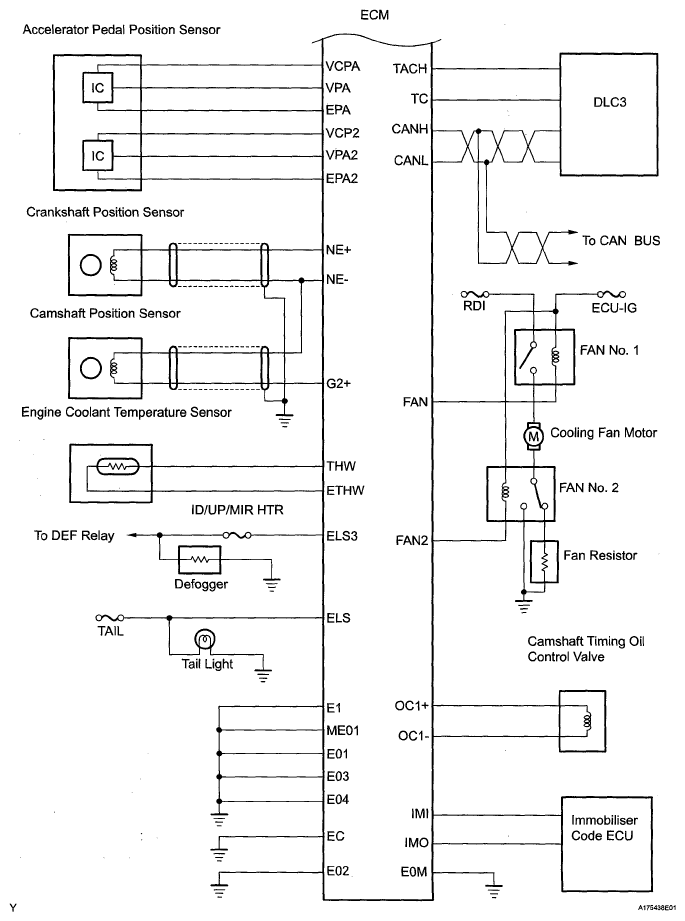

Fig 2: Engine Control System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

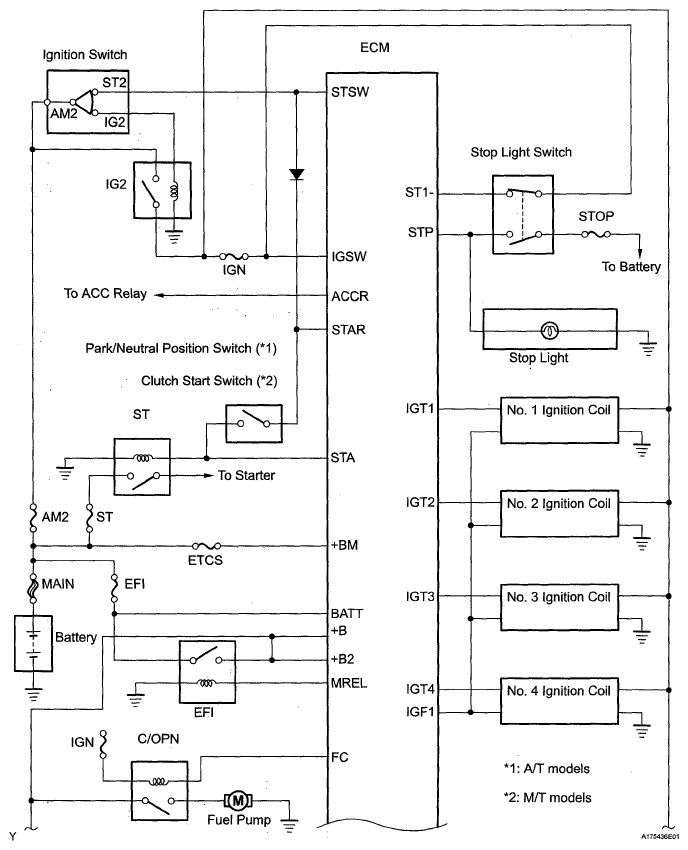

Fig 3: Engine Control System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
