Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

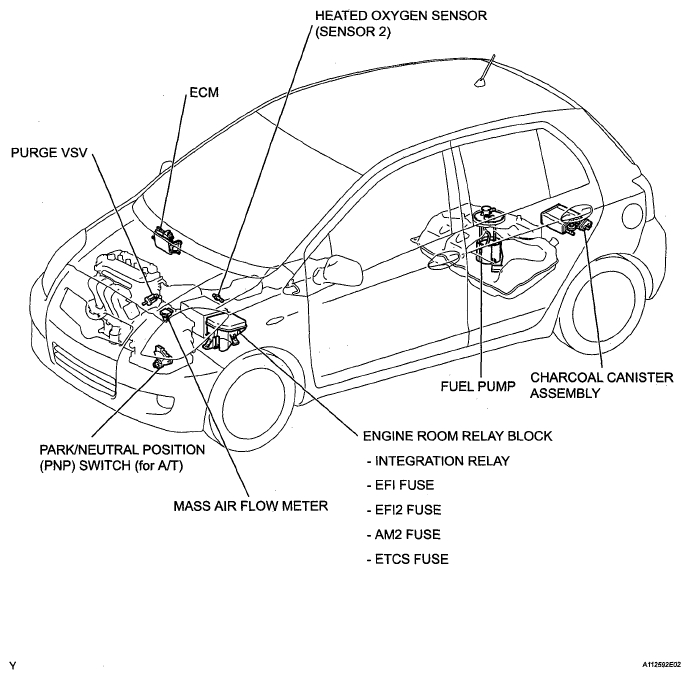

Fig 1: Identifying Engine Control System Replacement Components (1 Of 3)
G05589026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

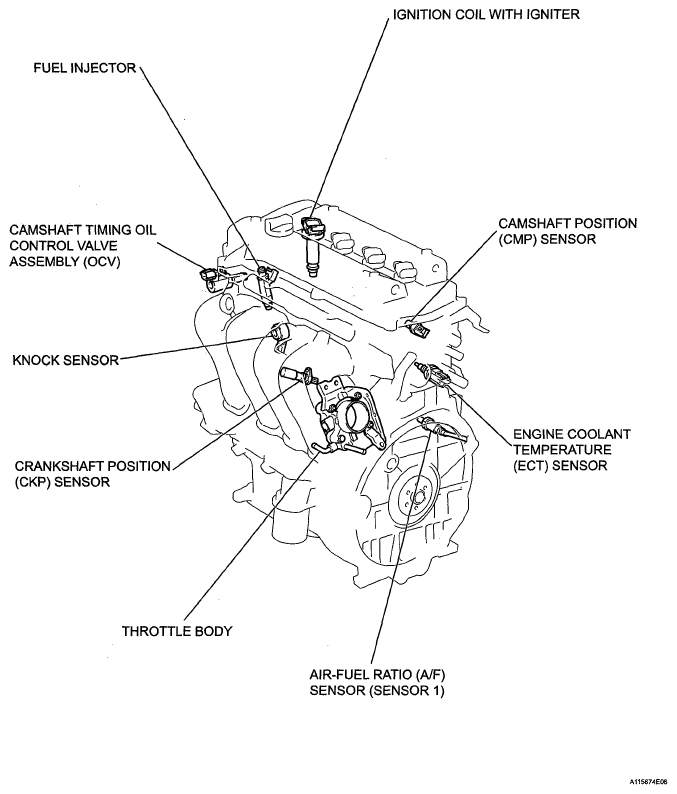

Fig 2: Identifying Engine Control System Replacement Components (2 Of 3)
G05589027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

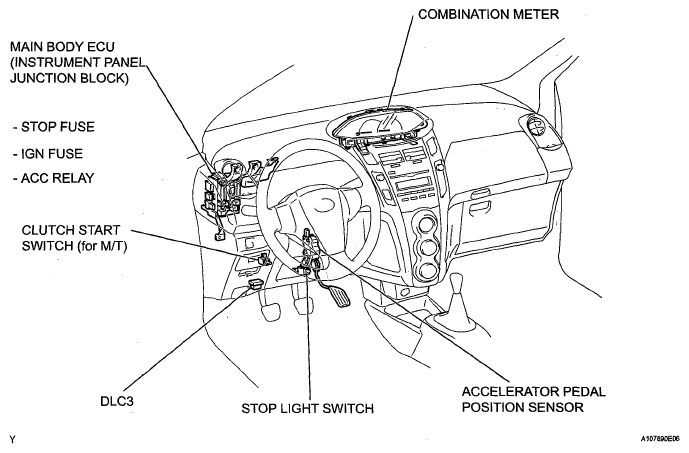

Fig 3: Identifying Engine Control System Replacement Components (3 Of 3)
G05589028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
