DTC P0351 Ignition Coil "A" Primary / Secondary Circuit; DTC P0352 Ignition Coil "B" Primary / Secondary Circuit; DTC P0353 Ignition Coil "C" Primary / Secondary Circuit; DTC P0354 Ignition Coil "D" Primary / Secondary Circuit: Description

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A Direct Ignition System (DIS) is used on this vehicle.

The DIS is a 1-cylinder ignition system in which each cylinder is ignited by one ignition coil and one spark plug is connected to the end of each secondary wiring. A powerful voltage, generated in the secondary wiring, is applied directly to each spark plug. The sparks of the spark plugs pass from the center electrode to the ground electrodes.

The ECM determines the ignition timing and transmits the ignition (IGT) signals to each cylinder. Using the IGT signal, the ECM turns the power transistor inside the igniter on and off. The power transistor, in turn, switches on and off the current to the primary coil. When the current to the primary coil is cut off, a powerful voltage is generated in the secondary coil. This voltage is applied to the spark plugs, causing them to spark inside the cylinders. As the ECM cuts the current to the primary coil, the igniter sends back an ignition confirmation (IGF) signal to the ECM, for each cylinder ignition.

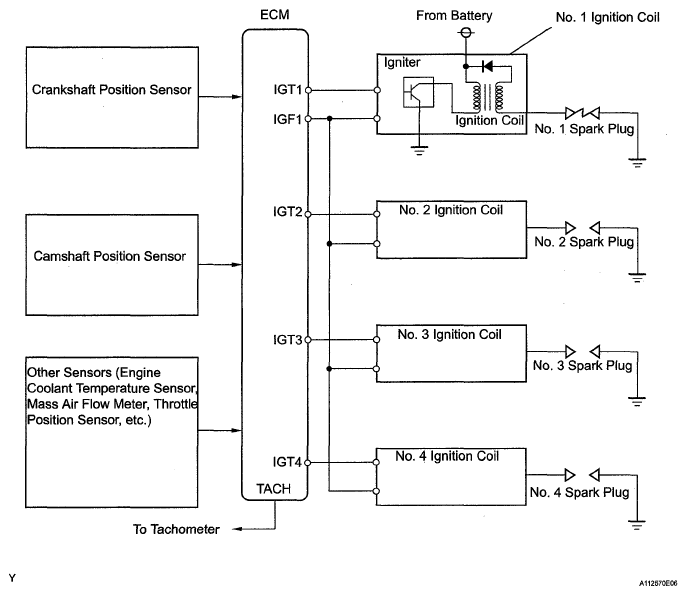

Fig 1: Description Of Ignition Coil Primary/Secondary
G05589146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITIONS CHART

DTC No. DTC Detection Conditions Trouble Areas
P0351
P0352
P0353
P0354
No IGF signal to ECM while engine running
(1 trip detection logic)
  • Ignition system
  • Open or short in IGF1 or IGT circuit (1 to 4) between ignition coil and ECM
  • No. 1 to No. 4 ignition coils
  • ECM
Fig 2: Identifying Waveform Signal
G05198167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference: Inspection using an oscilloscope.

While cranking or idling the engine, check the waveform between terminals IGT (1 to 4) and E1, and IGF1 and E1 of the ECM connector.

WAVEFORM REFERENCE CHART

Items Contents
Terminals CH1: IGT1, IGT2, IGT3, IGT4 - E1 CH2: IGF1 - E1
Equipment Settings 2 V/DIV 20 msec./DIV
Conditions Cranking or idling
