Transmission Control Cable Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Transmission Control Cable Assembly Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

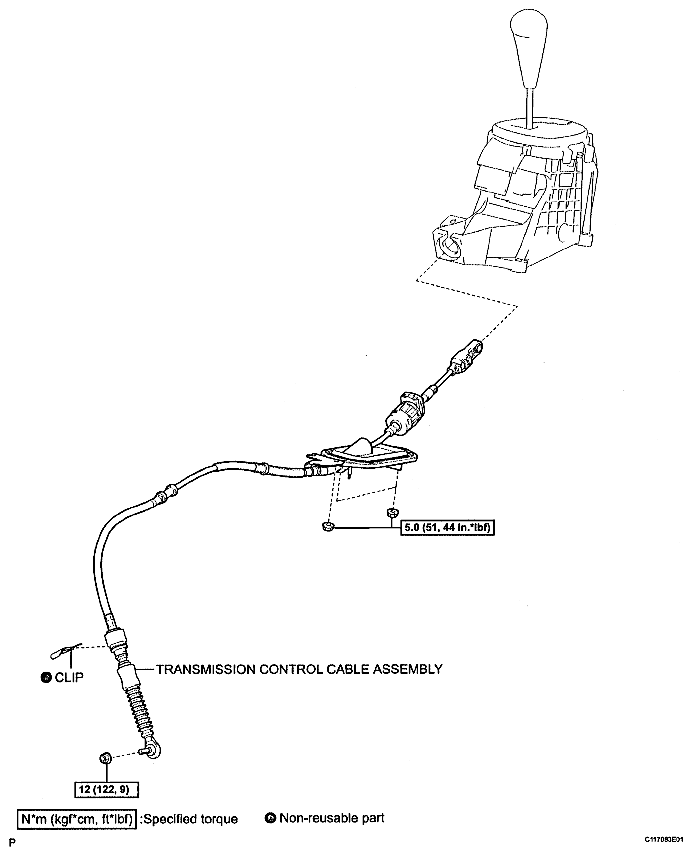

Fig 3: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (4 Of 5)

Fig 5: Identifying Transmission Control Cable Assembly Replacement Components With torque Specifications (5 Of 5)
