Automatic Transaxle Unit: Disassembly

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SPEEDOMETER SENSOR
    1. Remove the bolt and remove the speedometer sensor.
      Fig 1: Identifying Bolt And Speedometer Sensor
      G05591128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEEDOMETER DRIVEN GEAR
    1. Remove the clip and speedometer driven gear from the speedometer sensor.
    2. Remove the O-ring from the speedometer sensor.
      Fig 2: Identifying O-Ring And Speedometer Sensor
      G05591129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Remove the nut and washer and remove the control lever shaft.
      Fig 3: Identifying Control Shaft Lever With Nut And Washer
      G05591130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, pry out the lock plate and remove the manual valve shaft nut.
      Fig 4: Identifying Prying Out Lock Plate
      G05591131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and pull out the park/neutral position switch assembly.
      Fig 5: Identifying Bolts And Park/Neutral Position Switch Assembly
      G05591132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE TRANSMISSION REVOLUTION SENSOR
    1. Remove the bolt and remove the transmission revolution sensor.
      Fig 6: Identifying Bolt And Transmission Revolution Sensor
      G05591133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE OIL COOLER TUBE UNION
    1. Remove the 2 oil cooler tube unions from the transaxle case.
      2. Fig 7: Identifying Oil Cooler Tube Unions
      G05591134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the 2 oil cooler tube unions.
  6. REMOVE NO. 1 TRANSAXLE CASE PLUG
    1. Remove the 4 No. 1 transaxle case plugs from the transaxle housing and transaxle case.
      Fig 8: Identifying No. 1 Transaxle Case Plugs
      G05591135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 transaxle case plug from the transaxle case.
      3. Fig 9: Identifying No. 1 Transaxle Case Plug
      G05591136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-rings from the No. 1 transaxle case plugs.
  7. REMOVE BREATHER PLUG HOSE
    1. Remove the breather plug hose from the transaxle case.
    Fig 10: Identifying Breather Plug Hose
    G05591137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. FIX AUTOMATIC TRANSAXLE ASSEMBLY
  9. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUBASSEMBLY
    1. Remove the 19 bolts and remove the oil pan and oil pan gasket.
      Fig 11: Identifying Oil Pan Bolts
      G05591138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 oil cleaner magnets from the oil pan.
      3. Fig 12: Identifying Magnets
      G05591139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Examine the particles in the pan.
      1. Collect any steel chips with the removed magnets.

        Carefully look at the foreign matter and particles in the pan and on the magnets to predict the type of wear which might be found in the transaxle.

        Steel (magnetic): bearing, gear and clutch plate wear

        Brass (non-magnetic): bearing wear

  10. REMOVE VALVE BODY OIL STRAINER ASSEMBLY
    1. Remove the 3 bolts and remove the oil strainer assembly.
      Fig 13: Identifying Bolts
      G05591140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil strainer gasket from the oil strainer.
      Fig 14: Identifying Oil Strainer Gasket
      G05591141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Disconnect the 5 solenoid connectors.
    2. Remove the bolt and lock plate and remove the ATF temperature sensor.
      Fig 15: Identifying Bolt And Lock Plate
      G05591142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and remove the detent spring cover and detent spring.
      Fig 16: Identifying Bolts And Detent Spring Cover And Detent Spring
      G05591143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 13 bolts and the valve body assembly from the transaxle case.
      Fig 17: Identifying Bolts
      G05591144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE TRANSMISSION WIRE
    1. Remove the bolt and the transmission wire from the transaxle case.
      Fig 18: Identifying Bolt And Transmission Wire
      G05591145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the transmission wire.
      Fig 19: Identifying O-Ring
      G05591146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE TRANSAXLE CASE 2ND BRAKE GASKET
    1. Remove the transaxle case 2nd brake gasket from the transaxle case.
      Fig 20: Identifying Transaxle Case 2nd Brake Gasket
      G05591147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE TRANSAXLE CASE GASKET
    1. Remove the transaxle case gasket from the transaxle case.
      Fig 21: Identifying Transaxle Case 2nd Brake Gasket
      G05591148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE BRAKE DRUM GASKET
    1. Remove the brake drum gasket from the transaxle case.
      Fig 22: Identifying Brake Drum Gasket
      G05591149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CHECK BALL BODY
    1. Remove the check ball body and spring from the transaxle case.
      Fig 23: Identifying Check Ball Body And Spring
      G05591150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE B-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the B-2 accumulator piston and spring.
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a shop rag or piece of cloth.
      • Do not splash ATF with the compressed air.
        Fig 24: Identifying B-2 Accumulator Piston And Spring
        G05591151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the B-2 accumulator piston.
      Fig 25: Identifying O-Rings
      G05591152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE C-3 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-3 accumulator piston and spring.
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it with your hand using a shop rag or piece of cloth.
      • Do not splash ATF with the compressed air.
        Fig 26: Identifying C-3 Accumulator Piston And Spring
        G05591153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the C-3 accumulator piston.
      Fig 27: Identifying O-Rings
      G05591154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE C-2 ACCUMULATOR PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the oil hole and remove the C-2 accumulator piston and the spring.
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a shop rag or piece of cloth.
      • Do not splash ATF with the compressed air.
        Fig 28: Identifying C-2 Accumulator Piston And Spring
        G05591155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the C-2 accumulator piston.
      Fig 29: Identifying O-Rings
      G05591156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE TRANSAXLE HOUSING
    1. Remove the 14 bolts.
    2. Tap around the circumference of the transaxle housing with a plastic hammer to remove the transaxle housing from the transaxle case.
      NOTE: The differential gear assembly may be accidentally removed when the transaxle housing is removed.
      Fig 30: Identifying Differential Gear Assembly Bolts
      G05591157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSPECT INPUT SHAFT END PLAY
    1. Measure the end play in the axial direction.

      End play:

      0.37 to 1.29 mm (0.0146 to 0.0508 in.)

      If the end play is not as specified, select and replace the thrust needle roller bearing.

      Fig 31: Identifying Input Shaft End Play
      G05591158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE OIL PUMP ASSEMBLY
    1. Remove the 7 bolts and the oil pump assembly from the transaxle case.
      Fig 32: Identifying Bolts And Oil Pump Assembly
      G05591159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE DIFFERENTIAL GEAR ASSEMBLY
    1. Remove the differential gear assembly from the transaxle case.
      Fig 33: Identifying Differential Gear Assembly
      G05591160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE OVERDRIVE BRAKE GASKET
    1. Using a screwdriver, remove the 2 overdrive brake gaskets from the transaxle case.
      Fig 34: Identifying Overdrive Brake Gaskets
      G05591161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE INPUT SHAFT ASSEMBLY
    1. Remove the input shaft assembly from the transaxle case.
      Fig 35: Identifying Input Shaft Assembly
      G05591162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE STATOR SHAFT THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the input shaft.
      Fig 36: Identifying Thrust Needle Roller Bearing
      G05591163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FORWARD CLUTCH HUB THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing from the forward clutch hub.
      Fig 37: Identifying Thrust Needle Roller Bearing And Forward Clutch Hub
      G05591164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSPECT INTERMEDIATE SHAFT ASSEMBLY
    1. Using a dial indicator, measure the clearance of the intermediate shaft.

      Standard clearance:

      0.204 to 0.966 mm (0.008 to 0.038 in.)

      Fig 38: Identifying Clearance Of Intermediate Shaft
      G05591165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FORWARD CLUTCH HUB SUB-ASSEMBLY
    1. Remove the forward clutch hub from the transaxle case.
      Fig 39: Identifying Forward Clutch Hub
      G05591166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE REAR TRANSAXLE COVER ASSEMBLY
    1. Remove the 11 bolts.
      2. Fig 40: Identifying Bolts
      G05591167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tap around the circumference of the rear transaxle cover with a plastic hammer to remove the rear transaxle cover from the transaxle case.
  31. REMOVE TRANSAXLE CASE GASKET
    1. Remove the 4 transaxle case gaskets.
      Fig 41: Identifying Transaxle Case Gaskets
      G05591168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE REAR CLUTCH DRUM THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the thrust needle roller bearing.
      Fig 42: Identifying Thrust Needle Roller Bearing
      G05591169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INTERMEDIATE SHAFT ASSEMBLY
    1. Remove the intermediate shaft assembly from the transaxle case.
      Fig 43: Identifying Intermediate Shaft Assembly
      G05591170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE 2ND COAST AND OVERDRIVE BRAKE DISC
    1. Remove the flange, 2 discs and 2 No. 2 flanges from the transaxle.
      Fig 44: Identifying Flange, 2 Discs And 2 No. 2 Flanges
      G05591171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the C-2 hub thrust bearing race, the thrust needle roller bearing and the thrust bearing race from the direct clutch hub.
      Fig 45: Identifying C-2 Hub Thrust Bearing Race, Thrust Needle Roller Bearing And Thrust Bearing Race
      G05591172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE DIRECT CLUTCH HUB
    1. Remove the direct clutch hub from the transaxle case.
      Fig 46: Identifying Direct Clutch Hub
      G05591173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. REMOVE REAR NO. 2 PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Using a magnetic finger, remove the thrust bearing from the rear thrust needle bearing.
      Fig 47: Identifying Thrust Bearing
      G05591174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE REAR PLANETARY SUN GEAR ASSEMBLY
    1. Remove the rear planetary sun gear from the transaxle case.
      Fig 48: Identifying Rear Planetary Sun Gear
      G05591175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE REAR PLANETARY SUN GEAR THRUST NEEDLE ROLLER BEARING
    1. Remove the rear planetary sun gear thrust needle roller bearing and thrust washer No. 1 from the rear planetary sun gear.
      Fig 49: Identifying Rear Planetary Sun Gear Thrust Needle Roller Bearing And Thrust Washer No. 1
      G05591176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSPECT 1-WAY CLUTCH ASSEMBLY
    1. Hold the rear planetary sun gear and turn the 1-way clutch.
    2. Make sure that 1 -way clutch turns freely counterclockwise and locks when turned clockwise.
      Fig 50: Identifying 1-Way Clutch
      G05591177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE 1-WAY CLUTCH ASSEMBLY
    1. Remove the 1-way clutch assembly and planetary carrier thrust washer No. 2 from the rear planetary sun gear.
      Fig 51: Identifying 1-Way Clutch Assembly And Planetary Carrier Thrust Washer No. 2
      G05591178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE 2ND COAST AND OVERDRIVE BRAKE FLANGE HOLE SNAP RING
    1. Using a screwdriver, remove the snap ring from the transaxle case.
      Fig 52: Identifying Snap Ring From Transaxle Case
      G05591179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. REMOVE 2ND BRAKE BRAKE DISC
    1. Using a screwdriver, remove the snap ring.
      2. Fig 53: Identifying Snap Ring
      G05591180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the flange, 3 discs and 3 plates from the transaxle.
  44. REMOVE 2ND BRAKE PISTON SLEEVE
    1. Remove the 2nd brake piston sleeve from the transaxle case.
      Fig 54: Identifying 2nd Brake Piston Sleeve
      G05591181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSPECT NO. 2 1-WAY CLUTCH
    1. Install the 1-way clutch and the thrust washer onto the rear planetary sun gear.
    2. Hold the rear planetary sun gear and turn the 1 -way clutch.
    3. Make sure that the 1 -way clutch turns freely counterclockwise and locks when turned clockwise.
      Fig 55: Identifying No. 2 1-Way Clutch
      G05591182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE REAR PLANETARY GEAR ASSEMBLY
    1. Using a screwdriver, remove the snap ring.
    2. Remove the rear planetary gear assembly from the transaxle case.
      Fig 56: Identifying Rear Planetary Gear Assembly
      G05591183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE REAR PLANETARY GEAR THRUST NEEDLE ROLLER BEARING
    1. Remove the thrust needle roller bearing and 2 bearing races from the rear planetary gear assembly.
      Fig 57: Identifying Thrust Needle Roller Bearing And Bearing Races
      G05591184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE NO. 2 1-WAY CLUTCH
    1. Separate the 2nd brake cylinder, 1-way clutch No. and the rear planetary gear.
      Fig 58: Identifying 2nd Brake Cylinder And 1-Way Clutch No.2
      G05591185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. REMOVE OUTER RACE RETAINER
    1. Remove the retainer from 1-way clutch No. 2.
      Fig 59: Identifying Retainer
      G05591186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE FRONT PLANETARY SUN GEAR
    1. Remove the front planetary sun gear and thrust needle roller bearing from the transaxle case.
      Fig 60: Identifying Front Planetary Sun Gear And Thrust Needle Roller Bearing
      G05591187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE 1ST AND REVERSE BRAKE DISC
    1. Using a screwdriver, remove the snap ring.
    2. Remove the flange, 4 discs and 4 plates from the transaxle case.
      Fig 61: Identifying Flange, Discs And Plates
      G05591188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
    1. Using SST, a press and a screwdriver, remove the snap ring.

      SST 09387-00070

      Fig 62: Identifying Snap Ring
      G05591189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 1st and reverse brake return spring sub-assembly.
  53. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON
    1. Apply compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi) to the transaxle case to remove the 1st and reverse brake piston.
      NOTE:
      • Blowing the air may cause the piston to jump out. When removing the piston, hold it by hand using a shop rag or piece of cloth.
      • Do not splash ATF with the compressed air.
        Fig 63: Identifying Compressed Air To Transaxle Case
        G05591190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  54. REMOVE NO. 2 1ST AND REVERSE BRAKE PISTON O-RING
    1. Remove the 2 O-rings from No. 2 1st and reverse brake piston.
      Fig 64: Identifying O-Rings
      G05591191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. REMOVE COUNTER DRIVE GEAR NUT
    1. Fix the counter driven gear with the parking lock pawl.
      Fig 65: Identifying Counter Driven Gear With Parking Lock Pawl
      G05591192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, release the lock washer.

      SST 09930-00010

      Fig 66: Identifying Lock Washer
      G05591193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the nut and lock washer.

      SST 09387-00120

      Fig 67: Identifying Nut And Lock Washer
      G05591194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  56. REMOVE PLANETARY GEAR ASSEMBLY
    1. Using SST and a press, remove the planetary gear assembly from the transaxle case.

      SST 09950-60010 (09951 -00400, 09951 -00320, 09952-06010), 09950-70010 (09951-07100)

      Fig 68: Identifying Planetary Gear Assembly From Transaxle Case
      G05591195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE COUNTER DRIVE GEAR
    1. Install the 2 bolts onto the counter drive gear.

      Bolt (M6):

      L = 40 to 80 mm

      Pitch = 1.0 mm

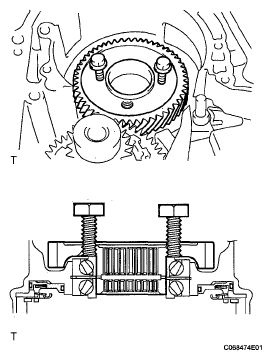

      Fig 69: Identifying Bolts Onto Counter Drive Gear
      G05591196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the 2 bolts and remove the counter drive gear and front planetary sun gear.
    3. Remove the 2 radial ball bearings from the counter drive gear and front planetary sun gear.
  58. REMOVE PARKING LOCK PAWL BRACKET
    1. Remove the 3 bolts, cam guide and bracket from the transaxle case.
      Fig 70: Identifying Bolts, Cam Guide And Bracket
      G05591197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE MANUAL VALVE LEVER SHAFT RETAINER SPRING
    1. Remove the manual valve lever shaft retainer spring from the manual valve lever shaft.
      Fig 71: Identifying Manual Valve Lever Shaft Retainer Spring
      G05591198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. Using a screwdriver, release and remove the spacer.
      Fig 72: Identifying Spacer
      G05591199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a pin punch and hammer, drive out the manual valve lever shaft spring pin.
      3. Fig 73: Identifying Driving Out Manual Valve Lever Shaft Spring Pin
      G05591200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the manual valve lever shaft and manual valve lever.
  61. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. Remove the parking lock rod from the manual valve lever.
      Fig 74: Identifying Parking Lock Rod And Manual Valve Lever
      G05591201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  62. REMOVE MANUAL VALVE LEVER SHAFT
    1. Remove the manual valve lever shaft from the transaxle case.
      Fig 75: Identifying Manual Valve Lever Shaft
      G05591202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  63. REMOVE PARKING LOCK PAWL
    1. Using a screwdriver, remove the parking lock pawl shaft from the transaxle case.
    2. Remove the parking lock pawl torsion spring and parking lock pawl from the transaxle case.
      Fig 76: Identifying Parking Lock Pawl Torsion Spring
      G05591203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. REMOVE COUNTER DRIVEN GEAR
    1. Remove the counter driven gear, drive pinion and thrust needle roller bearing from the transaxle case.
      Fig 77: Identifying Counter Driven Gear, Drive Pinion And Thrust Needle Roller Bearing
      G05591204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  65. REMOVE DIFFERENTIAL DRIVE PINION PLUG
    1. Using a brass bar and a hammer, remove the differential drive pinion plug.
      Fig 78: Identifying Differential Drive Pinion Plug
      G05591205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE DIFFERENTIAL DRIVE PINION
    1. Using SST and a press, remove the differential drive pinion from the counter driven gear.

      SST 09950-60010 (09951 -00350), 09950-70010 (09951-07150)

      Fig 79: Identifying Differential Drive Pinion
      G05591206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  67. REMOVE BEARING LOCK PLATE
    1. Remove the bolt and remove the bearing lock plate.
      Fig 80: Identifying Bolt And Bearing Lock Plate
      G05591207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  68. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Remove the differential gear lube apply tube from the transaxle housing.
      Fig 81: Identifying Differential Gear Lube Apply Tube
      G05591208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  69. REMOVE FRONT DRIVE PINION FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front drive pinion front tapered roller bearing from the transaxle housing.

      SST 09308-10010

      Fig 82: Identifying Front Drive Pinion Front Tapered Roller Bearing
      G05591209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  70. REMOVE FRONT DRIVE PINION REAR TAPERED ROLLER BEARING
    1. Using SST, remove the front drive pinion rear tapered roller bearing from the transaxle case.

      SST 09612-65014 (09612-01040)

      Fig 83: Identifying Front Drive Pinion Rear Tapered Roller Bearing
      G05591210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove transaxle case plate No. 1 from the transaxle case.
  71. REMOVE COUNTER DRIVE GEAR BEARING
    1. Remove the 2 counter drive gear bearing inner races RH from the transaxle case.
      2. Fig 84: Identifying Counter Drive Gear Bearing Inner Races RH
      G05591211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the counter drive gear bearing LH outer race from the transaxle case.

      SST 09308-00010

    3. Using SST, remove the counter drive gear bearing rear outer race from the transaxle case.

      SST 09308-00010

      Fig 85: Identifying Counter Drive Gear Bearing Rear Outer Race
      G05591212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE COUNTER DRIVE GEAR HOLE SNAP RING
    1. Using a screwdriver, remove the counter drive gear hole snap ring from the transaxle case.
      Fig 86: Identifying Counter Drive Gear Hole Snap Ring
      G05591213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Using a screwdriver, remove the oil seal from the transaxle case.
      Fig 87: Identifying Oil Seal
      G05591214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  74. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, remove the oil seal from the transaxle case.

      SST 09950-60010 (09951 -00550), 09950-70010 (09951-07100)

      Fig 88: Identifying Oil Seal From Transaxle Case
      G05591215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE TRANSAXLE CASE OIL SEAL
    1. Using SST and a hammer, remove the transaxle case oil seal from the transaxle housing.

      SST 09950-60010 (09951 -00530), 09950-70010 (09951-07100)

      Fig 89: Identifying Transaxle Case Oil Seal
      G05591216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
