System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

The configuration of the electronic control system in the U340E automatic transaxle is as shown in the following chart.

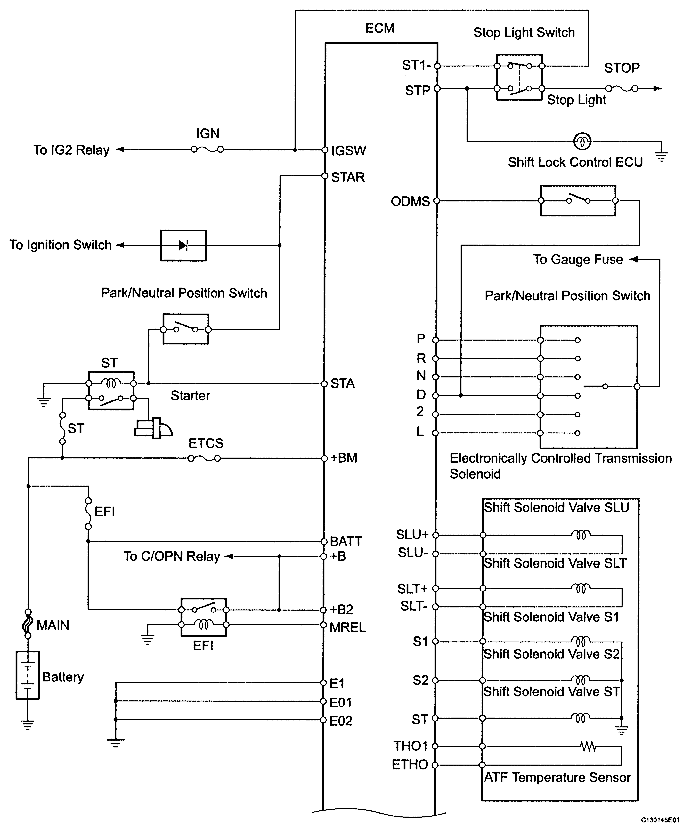

Fig 1: Identifying Automatic Transaxle System - System Diagram (1 Of 2)
G04831012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Automatic Transaxle System - System Diagram (2 Of 2)
G04831013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
