Automatic Transaxle Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

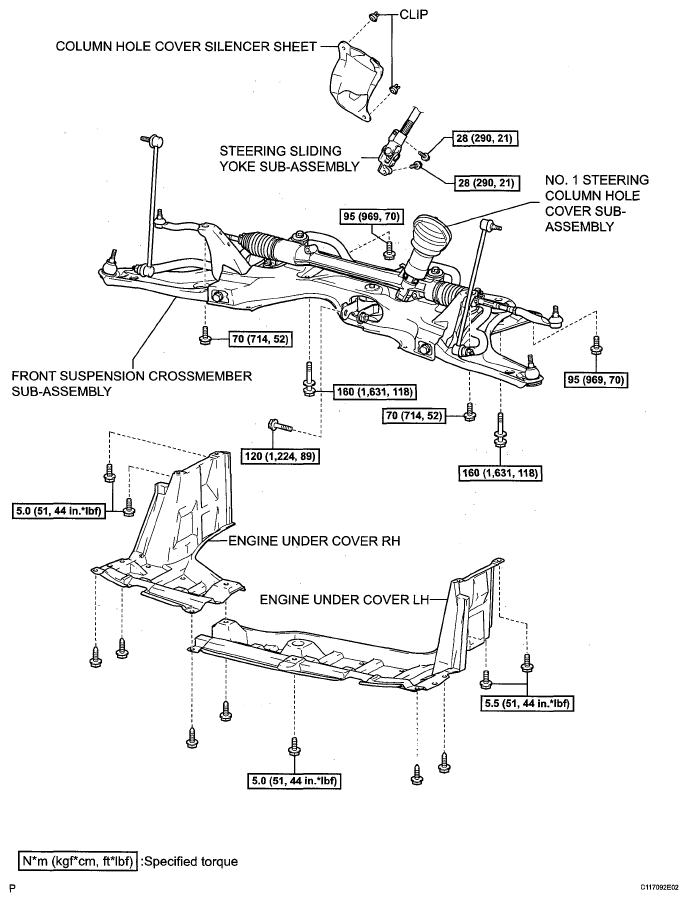

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

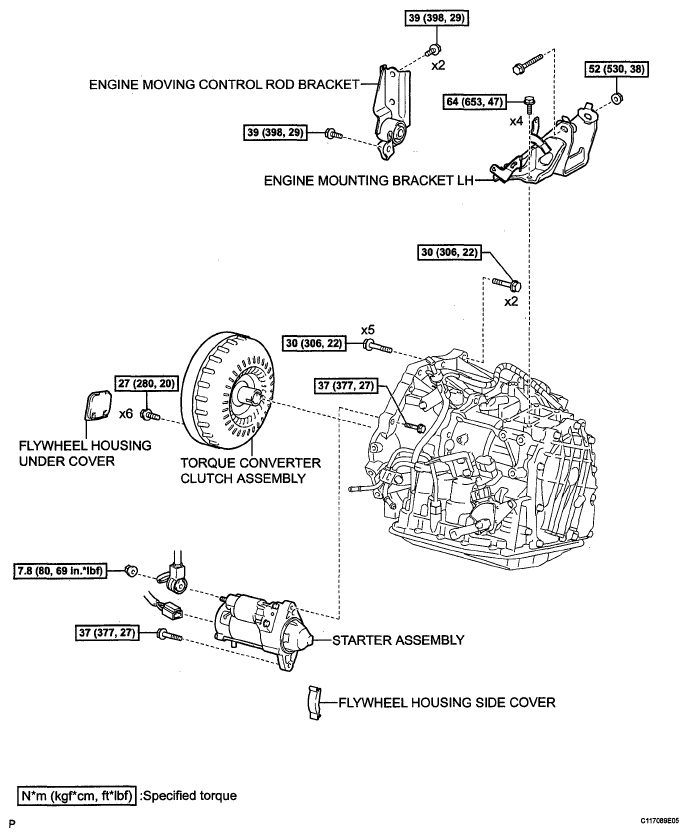

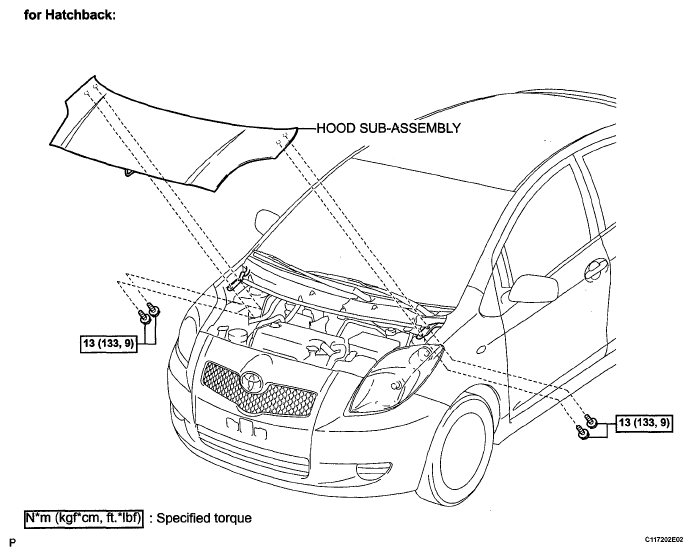

Fig 2: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specification (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

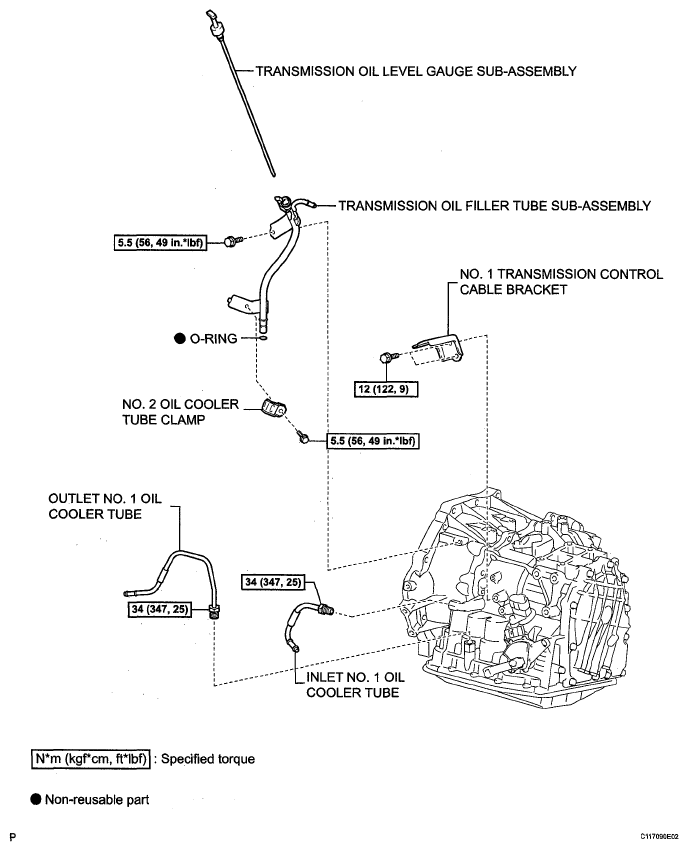

Fig 3: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

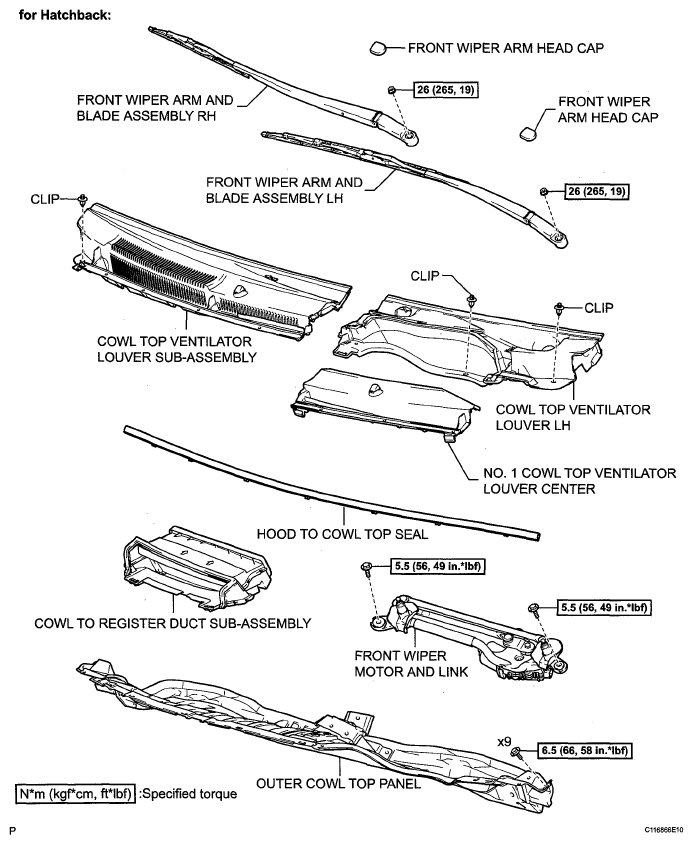

Fig 4: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

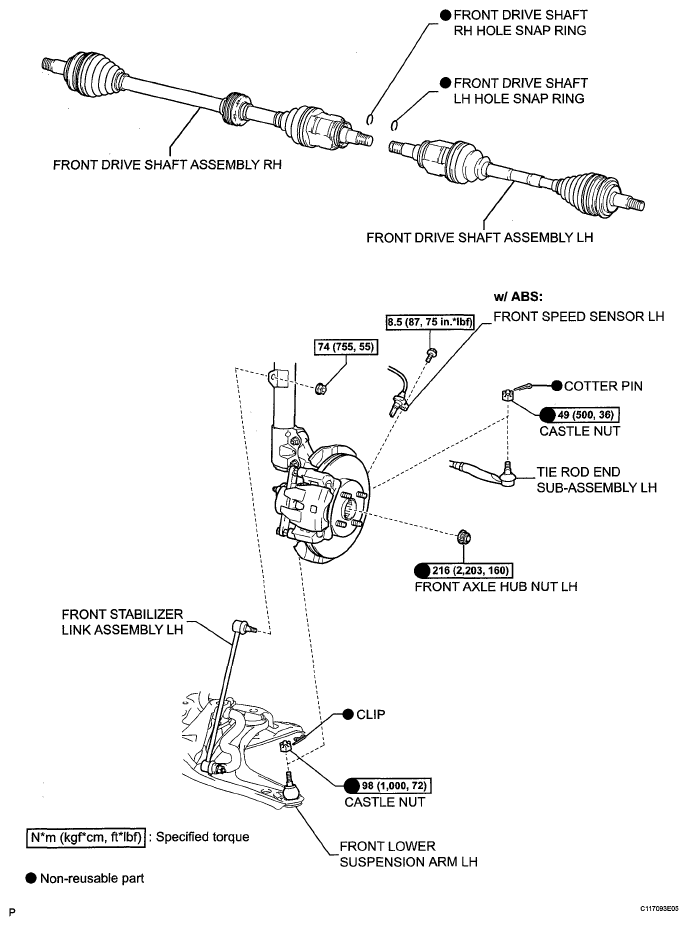

Fig 5: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

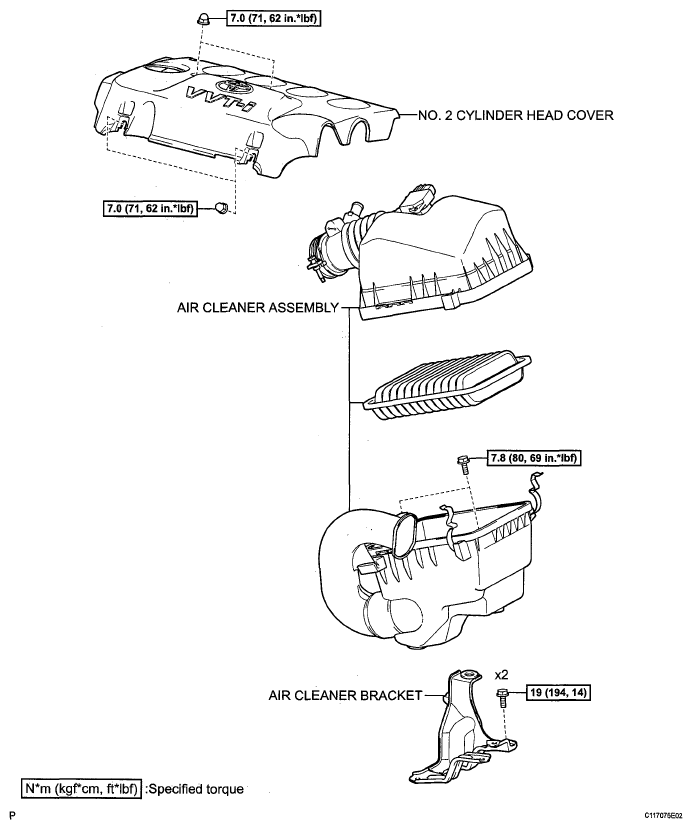

Fig 6: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

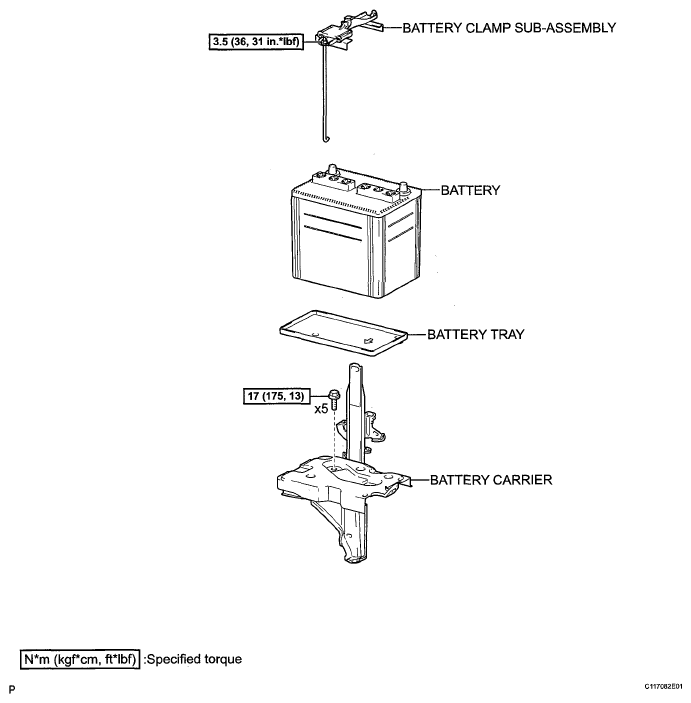

Fig 7: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (7 Of 10)

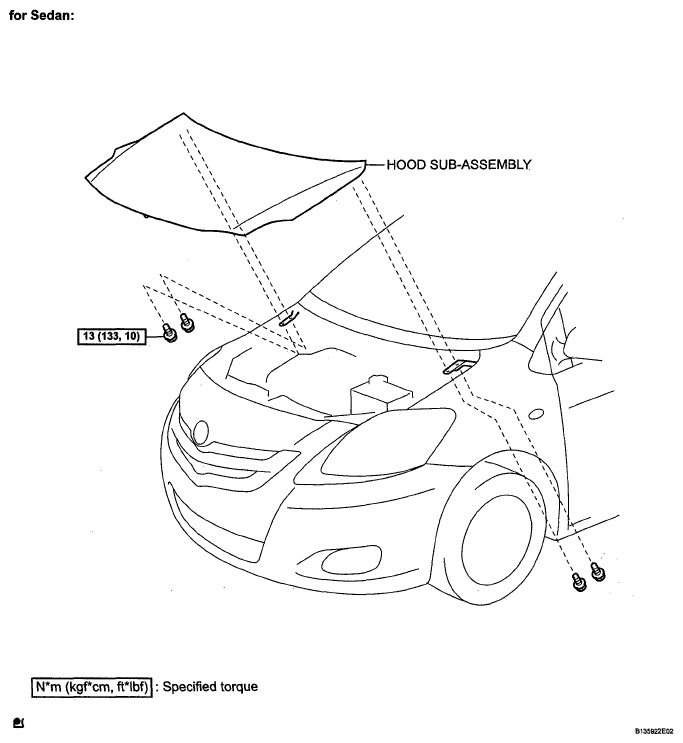

Fig 8: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (8 Of 10)

Fig 9: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (9 Of 10)

Fig 10: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications (10 Of 10)
