Steering Gear: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

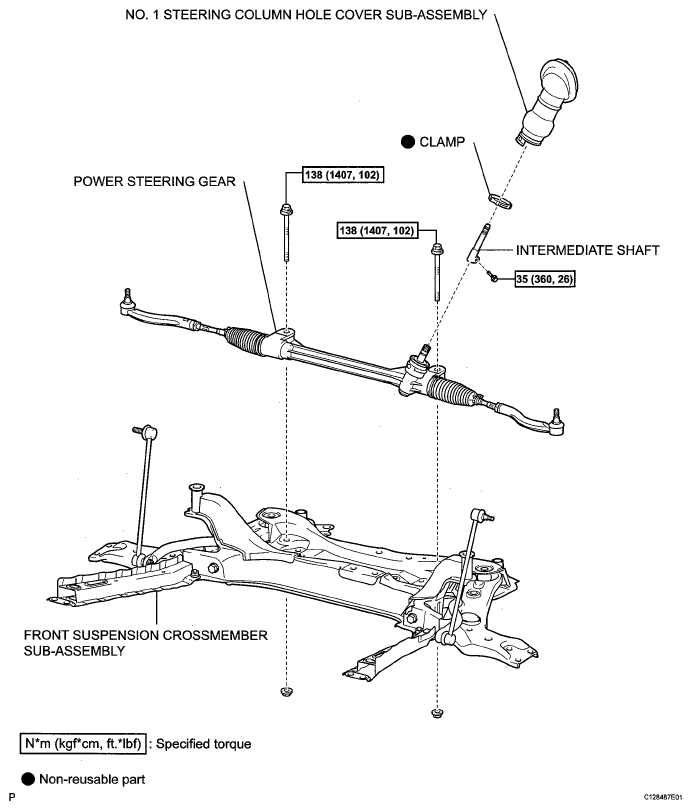

Fig 1: Steering Gear Replacement Components With Torque Specifications (1 Of 3)
G05585156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Steering Gear Components (2 Of 3)
G05585157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Steering Gear Replacement Components With Torque Specifications (3 Of 3)
G05585158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
