Section 234 (Tire And Wheel)
>>
TIRE PRESSURE WARNING RECEIVER (w/ Antenna)
>>
Components
TIRE PRESSURE WARNING RECEIVER (w/ Antenna): Components
WARNING:
This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Tire Pressure Warning Receiver (w/Antenna) Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Tire Pressure Warning Receiver (w/Antenna) Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

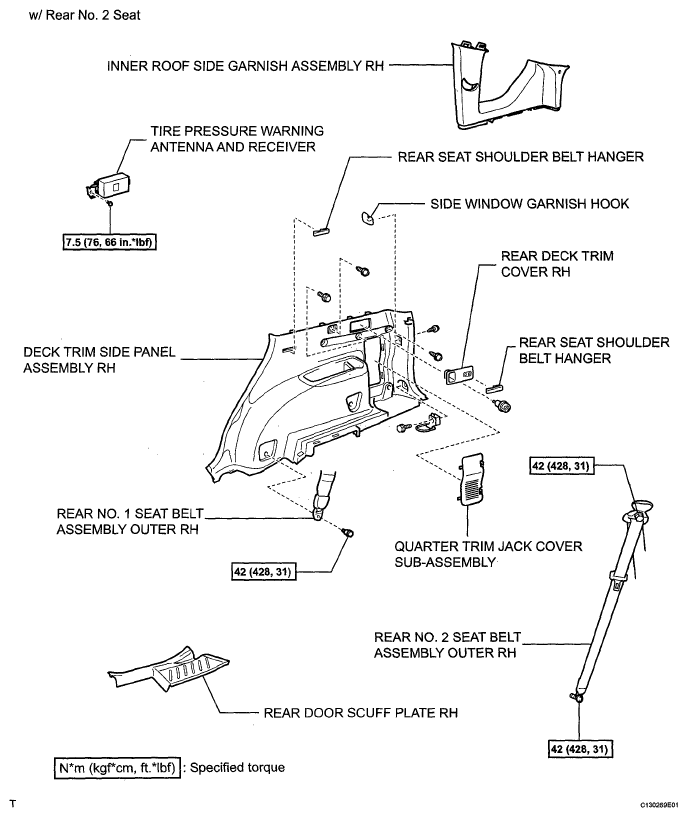

Fig 3: Tire Pressure Warning Receiver (w/Antenna) Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

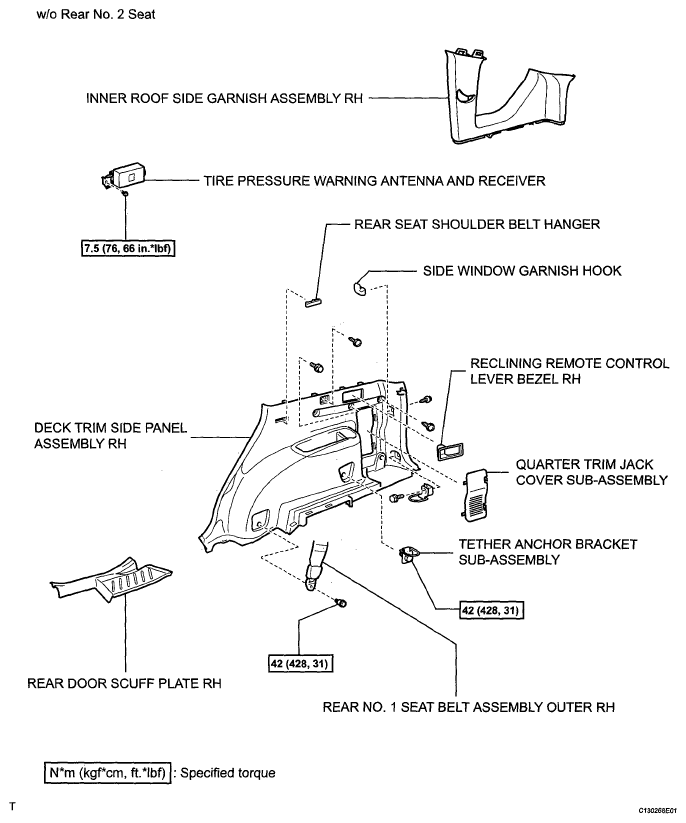

Fig 4: Tire Pressure Warning Receiver (w/Antenna) Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
