Brake Warning Light Remains ON: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

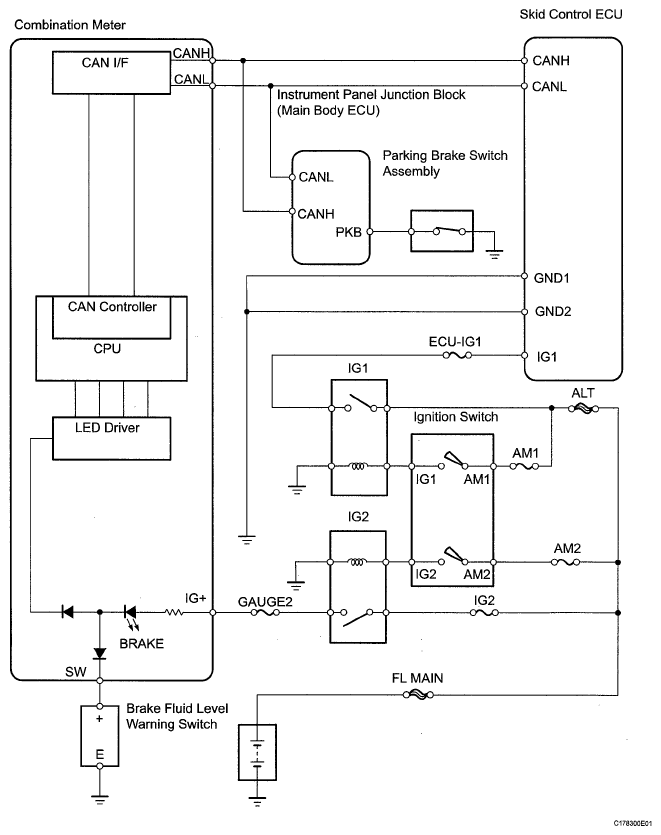

Fig 1: Identifying Brake Warning Light Remains On - Wiring Diagram
G05585048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
