Short to GND in CAN Bus Line: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

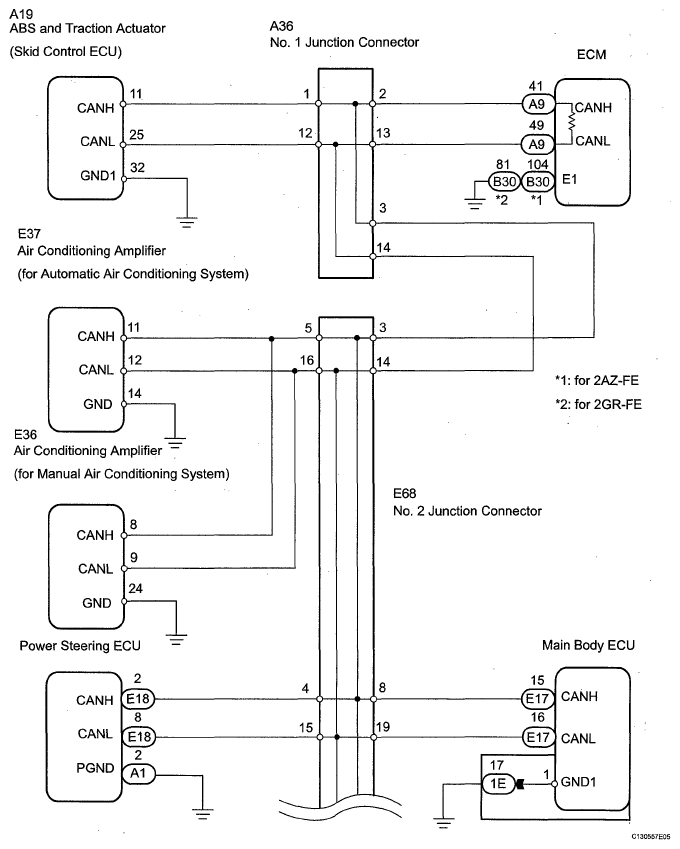

Fig 1: Identifying Short To GND In CAN Bus Line - Wiring Diagram (1 Of 2)
G05586681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

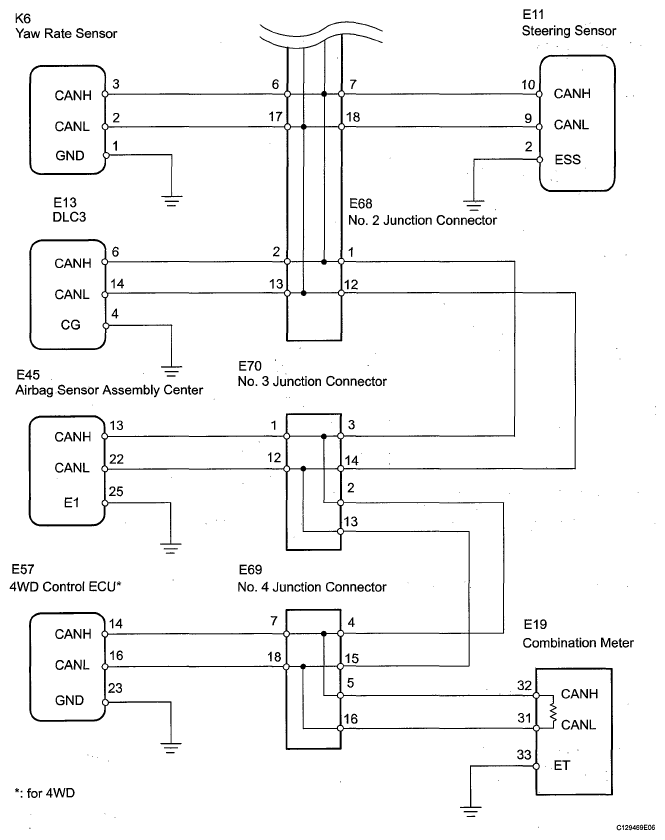

Fig 2: Identifying Short To GND In CAN Bus Line - Wiring Diagram (2 Of 2)
G05586682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
