Open in One Side of CAN Branch Line: Wiring Diagram

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying CAN Bus Line - Wiring Diagram (1 Of 2)
G05586627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

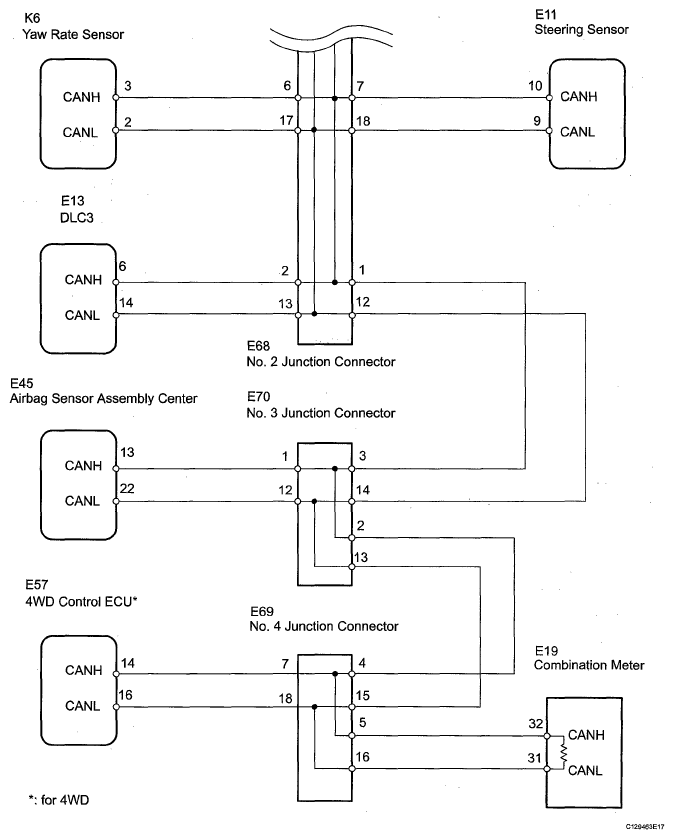

Fig 2: Identifying CAN Bus Line - Wiring Diagram (2 Of 2)
G05586708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
