Rear Differential Side Gear Shaft Oil Seal: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

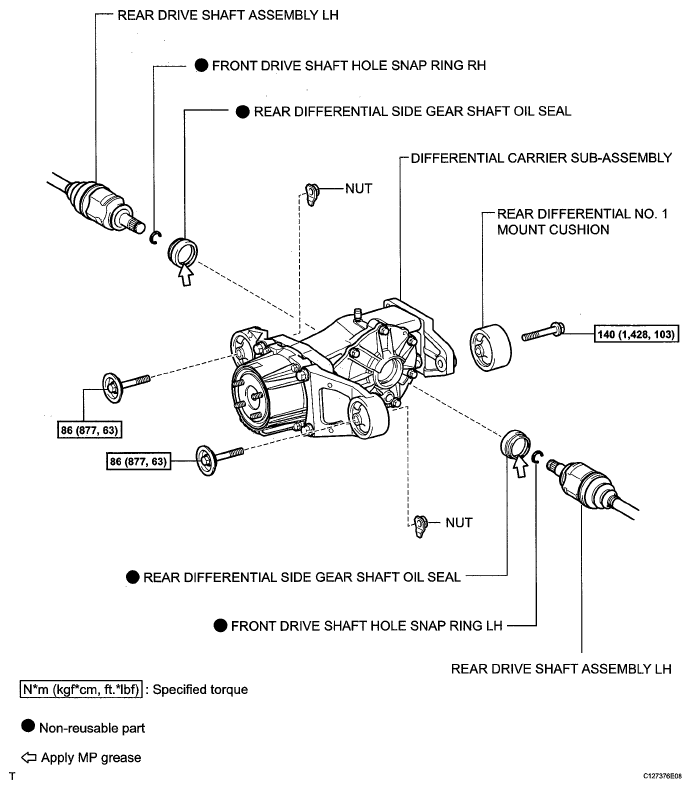

Fig 1: Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (3 Of 3)
