Rear Differential Carrier Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

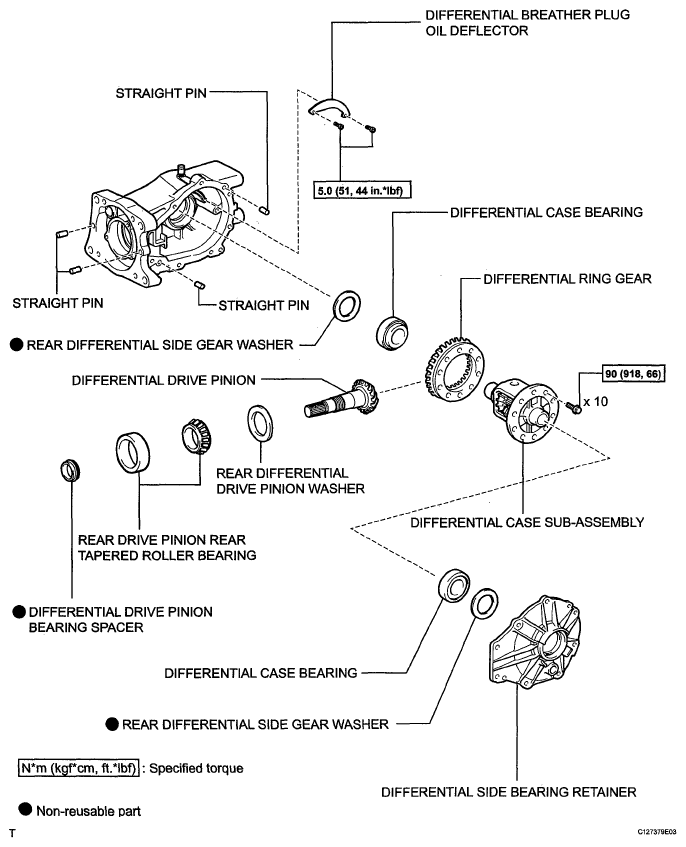

Fig 1: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

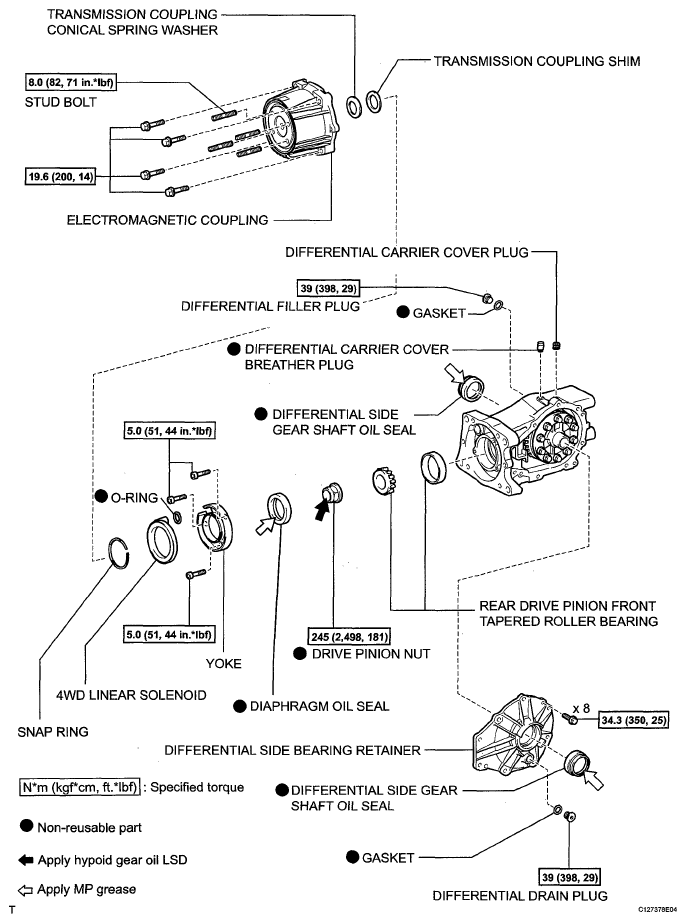

Fig 2: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Differential Side Gear Shaft Oil Seal Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

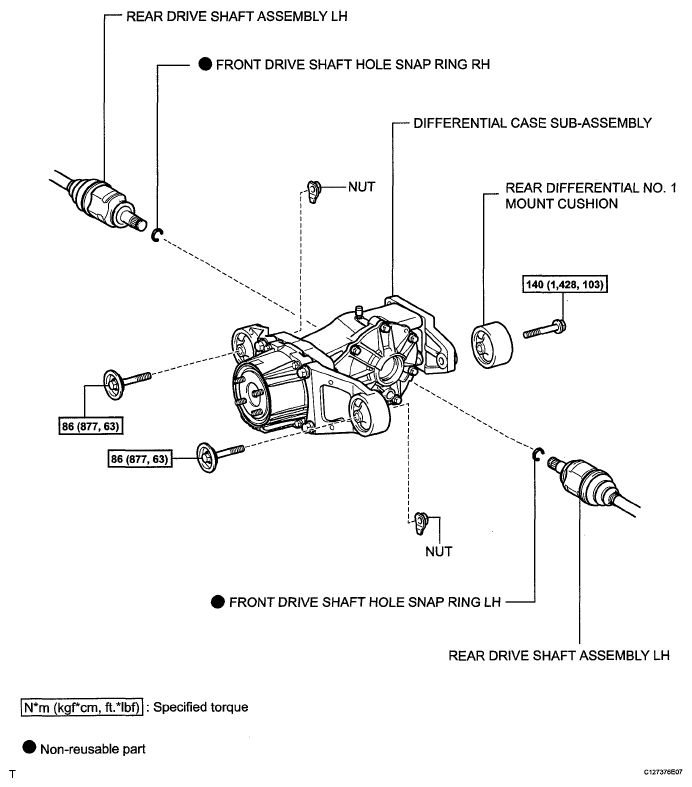

Fig 4: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

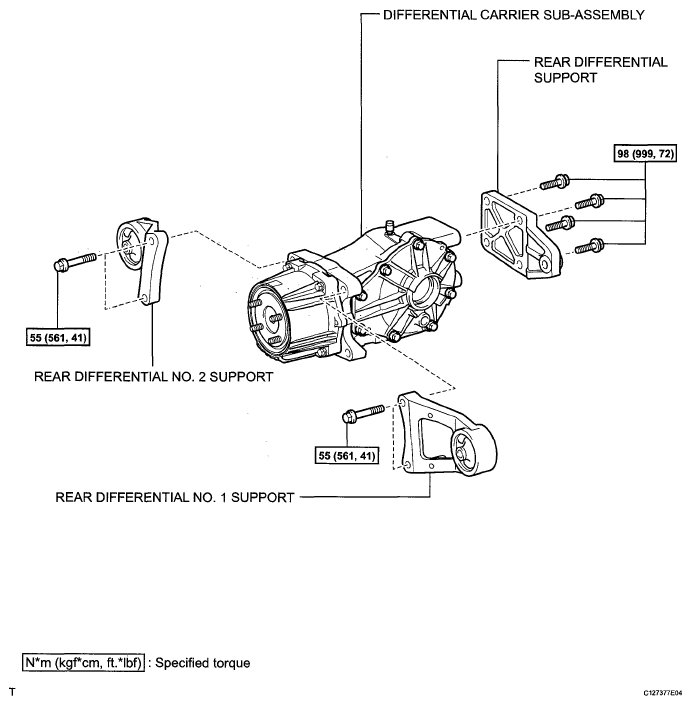

Fig 5: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (5 Of 7)

Fig 6: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (6 Of 7)

Fig 7: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specifications (7 Of 7)
